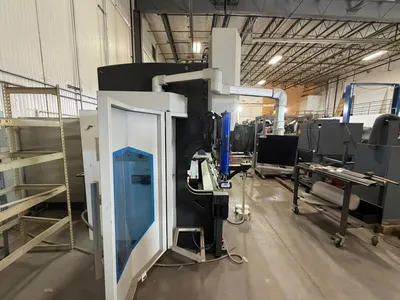

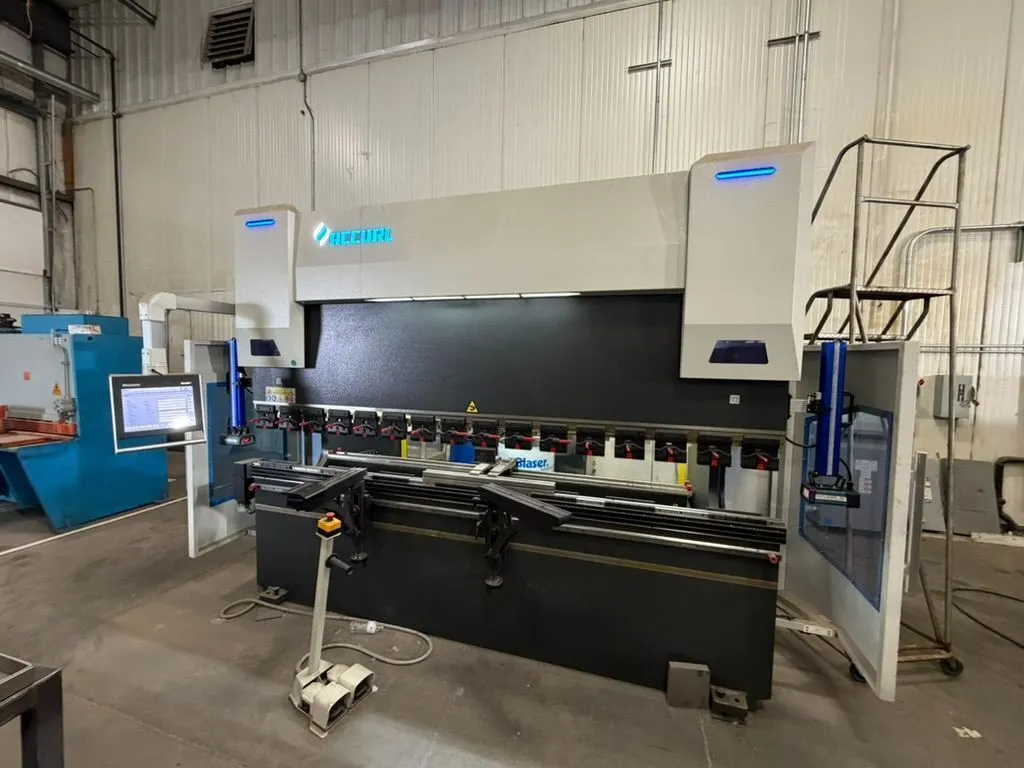

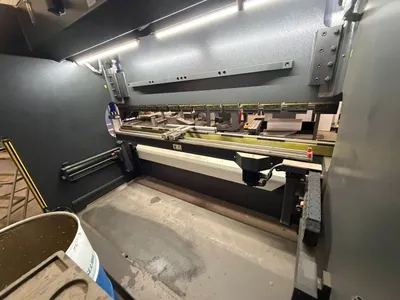

150 Ton x 10' Accurl Smart Fab B32135 CNC Press Brake, 2019- Delem Control
Have one to sell?
ConditionUsed
1 available
Max Tonnage: 150
Working Length: 125.98"
Open Height: 19"
Max Stroke: 7.87"
Throat Depth: 16"
Backgauge Travel: 31"
Rapid Approach: 472 IPM
Working Speed: 18.9 IPM
Return Speed: 354 IPM
Oil Tank Capcity: 79 Gal.
Main Motor HP: 15
Voltage: 220V/3 Phase 60 Hz.
Nominal Fuse: 49 Amps
Delem DA58T CNC Control
CNC Controlled X/R Backgauge
Safety Laser
CNC Crowning
Front Sheet Supports
Imperial
| Tonnage | 150 T |
| Type | HYD |
| Overall Length | 10' |
| Between Housings | 8' |
| Stroke | 7.87" |
| # Axis | 2 |
| Control | CNC (Delem DA58T) |
| Dimensions | 168"L x 71"H x 105"H |
| Weight | 18,500 Lbs. |
Max Tonnage: 150
Working Length: 125.98"
Open Height: 19"
Max Stroke: 7.87"
Throat Depth: 16"
Backgauge Travel: 31"
Rapid Approach: 472 IPM
Working Speed: 18.9 IPM
Return Speed: 354 IPM
Oil Tank Capcity: 79 Gal.
Main Motor HP: 15
Voltage: 220V/3 Phase 60 Hz.
Nominal Fuse: 49 Amps
Delem DA58T CNC Control
CNC Controlled X/R Backgauge
Safety Laser
CNC Crowning
Front Sheet Supports
