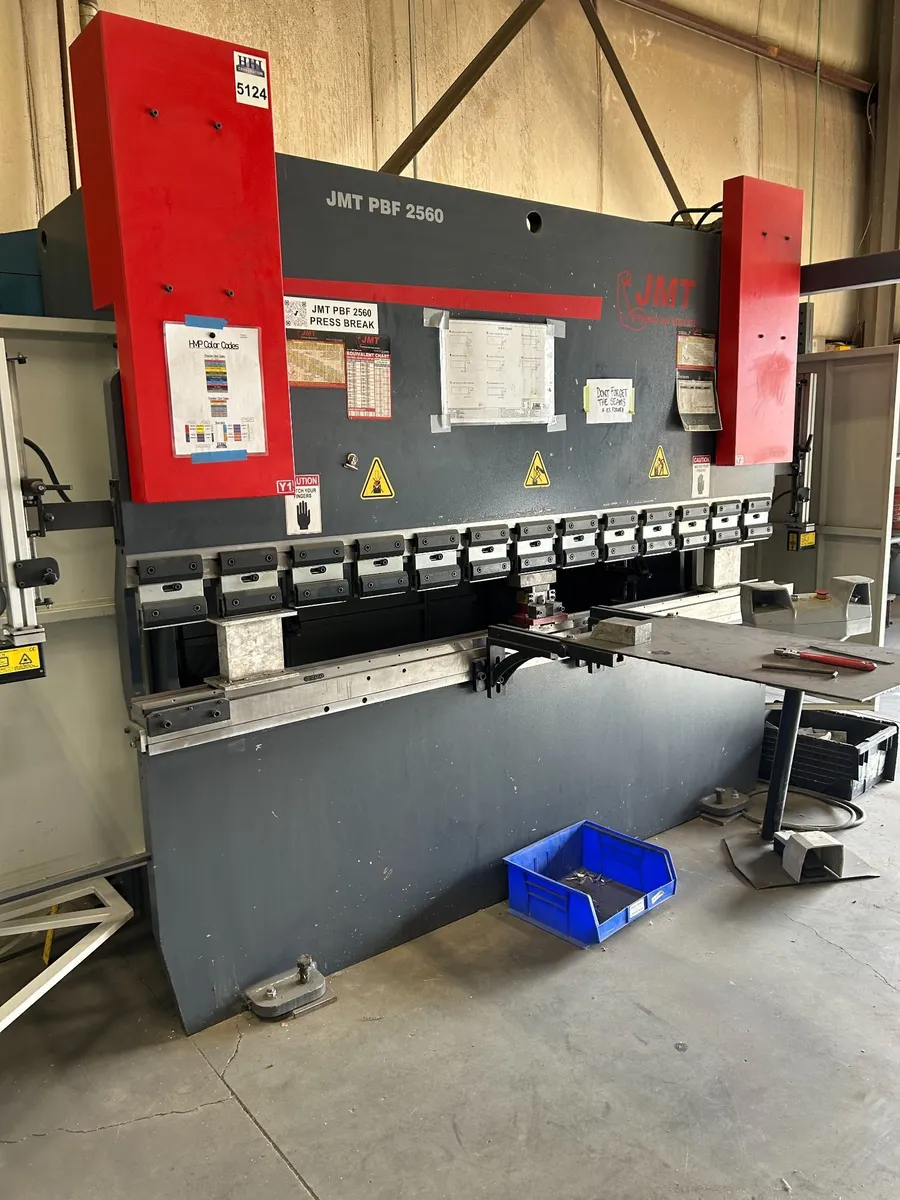

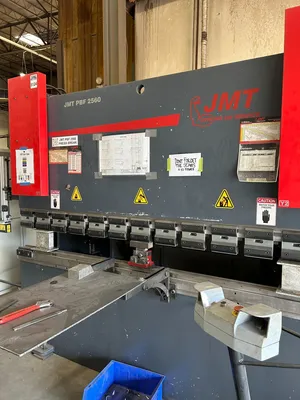

66 ton x 8' Durma/JMT PBF 2560 CNC Press Brake, 2013- Tooling Included
Have one to sell?
ConditionUsed
1 available
Bending Force / Tonnage: 60 tons (66 U.S. tons)
Bending Length: 2,550 mm (~100 inches)
Distance Between Columns (Housings): 2,150 mm (84.6 inches / ~7 feet)
Stroke: 160 mm (6.3 inches)
Daylight: 350 mm (13.8 inches)
Throat Depth: 250 mm (9.8 inches)
Speeds and Axes
Standard Controlled Axes: Y1, Y2, and X-axis
Y-Axis Rapid Speed: 120 mm/s
Y-Axis Working Speed: 9 mm/s
Y-Axis Return Speed: 70 mm/s
X-Axis Backgauge Travel: 620 mm
X-Axis Backgauge Speed: 250 mm/s
Physical Dimensions and Power
Motor Power: 5.5 kW (approx. 7.4 HP)
Oil Tank Capacity: 100 liters (approx. 26.4–30 gallons)
Table Height: 813 mm (32 inches)
Table Width: 104 mm (4.1 inches

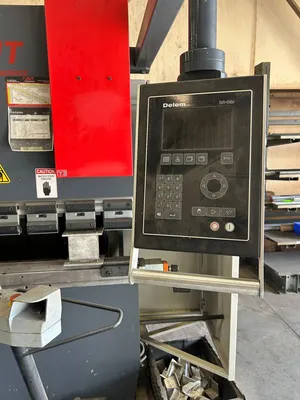

Delem DA-52S CNC Control

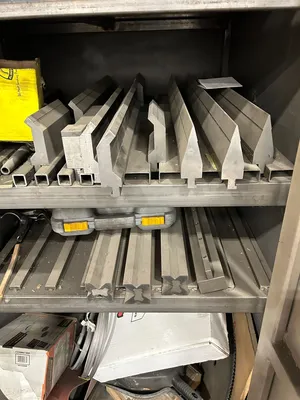

American Style Upper Punch/4 Way bottom V Die
Imperial
| Tonnage | 66 T |
| Type | HYD |
| Overall Length | 8.4' |
| Between Housings | 7' |
| Stroke | 6.3" |
| # Axis | 4 |
| Control | CNC (Delem-DA52) |
| Dimensions | 128"L x 47"W x 93"H |
| Weight | 11,000 lbs. |
Bending Force / Tonnage: 60 tons (66 U.S. tons)
Bending Length: 2,550 mm (~100 inches)
Distance Between Columns (Housings): 2,150 mm (84.6 inches / ~7 feet)
Stroke: 160 mm (6.3 inches)
Daylight: 350 mm (13.8 inches)
Throat Depth: 250 mm (9.8 inches)
Speeds and Axes
Standard Controlled Axes: Y1, Y2, and X-axis
Y-Axis Rapid Speed: 120 mm/s
Y-Axis Working Speed: 9 mm/s
Y-Axis Return Speed: 70 mm/s
X-Axis Backgauge Travel: 620 mm
X-Axis Backgauge Speed: 250 mm/s
Physical Dimensions and Power
Motor Power: 5.5 kW (approx. 7.4 HP)
Oil Tank Capacity: 100 liters (approx. 26.4–30 gallons)
Table Height: 813 mm (32 inches)
Table Width: 104 mm (4.1 inches
Delem DA-52S CNC Control
American Style Upper Punch/4 Way bottom V Die
