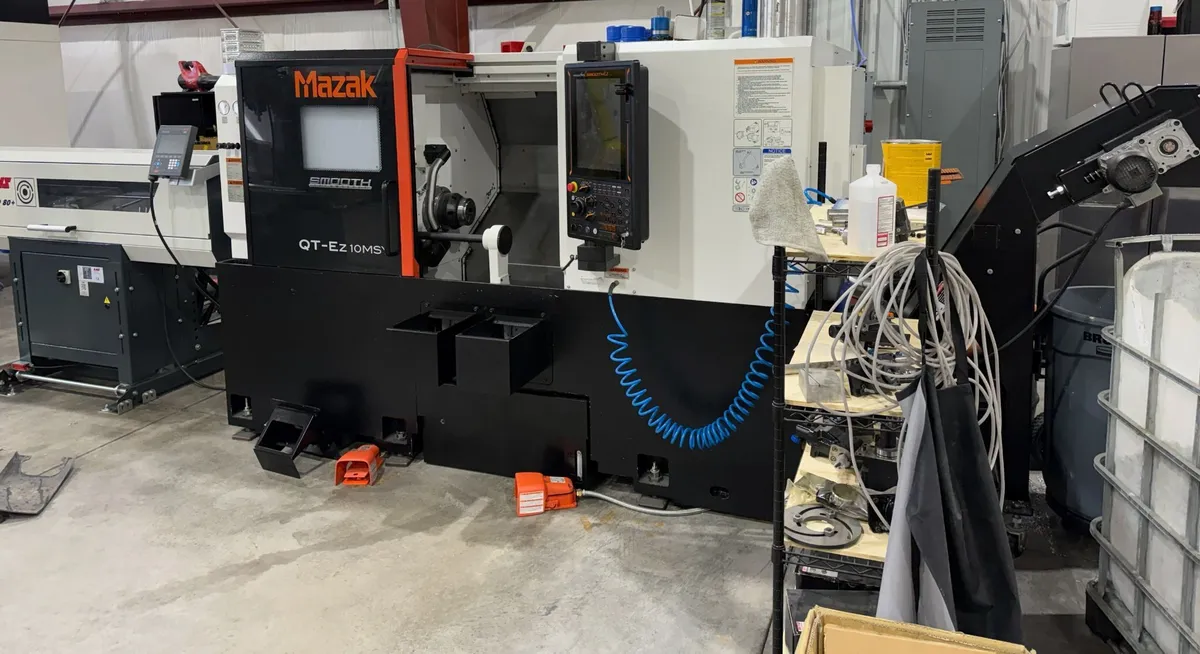

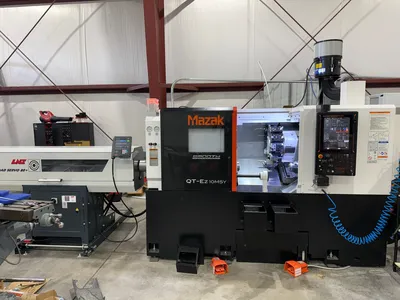

Mazak QT-Ez 10MSY CNC Lathe – 2024 - Y-Axis, Live Tooling & Sub Spindle Barfeeder

Options
• 118 PSI high-pressure coolant system with 16 GPM flow

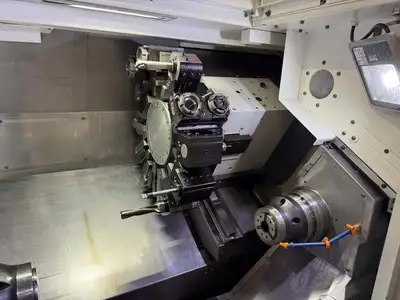

• Lots of Live and Static Tooling
All are Mazak Or WTO tooling. Most are listed in pictures to the limit of pictures allowed on the ad.
Static OD turning Single QTY 4
Static Od Turning Double side QTY 4
Static Boring Bar Holder Single QTY 3
Static Boring Bar Holder Double Side QTY 3
Axial live-tool holder 90-degree Main Spindle QTY 2
Axial live-tool holder 90-degree Main and Sub Spindle QTY 4
Radial live-tool holder straight Main Spindle QTY 4
Radial live-tool holder straight Main and Sub Spindle QTY 2
Static Boring Bar Holder Top and Bottom QTY 1
Plug QTY 4
Groove / Cutoff Holder QTY 1

• Royal QG-65 Accu-Length quick-change collet chuck
• Royal QG-65 Accu-Length quick-change collet chuck Collet Removal Tool
• Royal QG-52 Accu-Length quick-change collet chuck
• Royal QG-52 Accu-Length quick-change collet chuck Collet Removal Tool
• Standard 10 Inch Kitagawa 3 Jaw Chuck
• Standard 6 Inch Kitagawa 3 Jaw Chuck

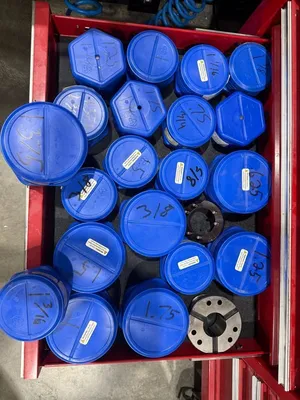

• Entire Drawer of QG-65,52 Quick Change Collets, as show in pictures there are many Sizes
• Automatic parts catcher
• Extra parts-catcher bucket
• LNS Quick Load Servo 80+ bar feeder
• Factory-supplied side-discharge hinged chip conveyor
• Automatic tool eye for tool setting
• Additional LED work light
• Mist-collector Royal FX 300 with After Filter Option
• Expanded 8 MB program memory
• Automatic power-off function
• Operation-complete buzzer
• Three-color signal tower

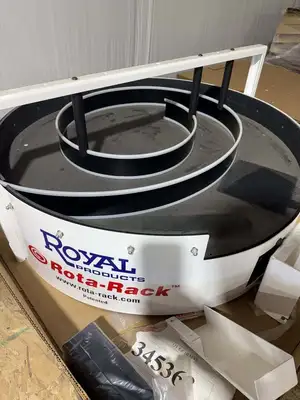

• Heavy Duty Royal Rotorack with Deluxe Control
This rotorack and attached conveyor goes under the automatic parts catcher boxes and the pictured conveyor would take the part and stock drops to the rotorack. This was of course, set up for all night production but I never got around to putting it together. The rotorack and conveyor are brand new and never used or installed. Also, in one of the pictures there is a black box and that replaces the standard factory supplied parts catcher bucket. This one is built for this setup so when you go to use the rotorack you can change out those buckets and the parts are angled down onto the conveyor. I have the entire kit for this change out which includes two of these black boxes for both sides. There isn’t much to it.

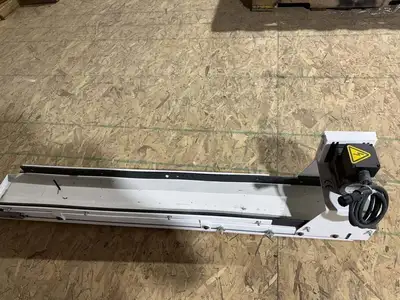

• Heavy Duty Rotorack Conveyor (In the picture it looks bent but it is not its in perfect condition)
• Spindle Liners - JL Berns steel Liners Sizes 2.5, 1, 1.375, 1.75
• Extended Length Bar capacity to 48 Inch Bars
• All Manuals
• NexJen Oil Skimmer As Shown in Pictures
• Royal 3 finger Gripper. I used these to pull longer parts out of the sub and put into parts catcher
• QG-52 Collet part ejector
• Necessary wrenches for live tooling

Standard Specs
Standard Chuck Size (Main/Second) ........................ 10” / 6”
Maximum Swing......................................................... 27.4”
Maximum Machining Length ................................... 20.78”
Standard Bar Capacity............................................... 2.5”
Spindle Motor (30min rating) .................................. 20 HP
Spindle Speed............................................................. 4200 RPM
Spindle Nose............................................................... A2-6
Number of Tools......................................................... 12
Mill Spindle Motor...................................................... 7.5 HP
Mill Spindle Speed....................................................... 6,000 RPM
Travel (X/Y/Z) .............................................................. 8.5” / 4.00” / 23.75”
Feed Axis Rapid Traverse (X/Y/Z) ............................. 1181 / 394 / 1417 IPM
Second Spindle Speed................................................ 6,000 RPM
Second Spindle Motor (40% ED) ............................... 10 HP
Machine Height.........., ............................................... 67.9”
Machine Weight........................................................ 12,125 LBS
