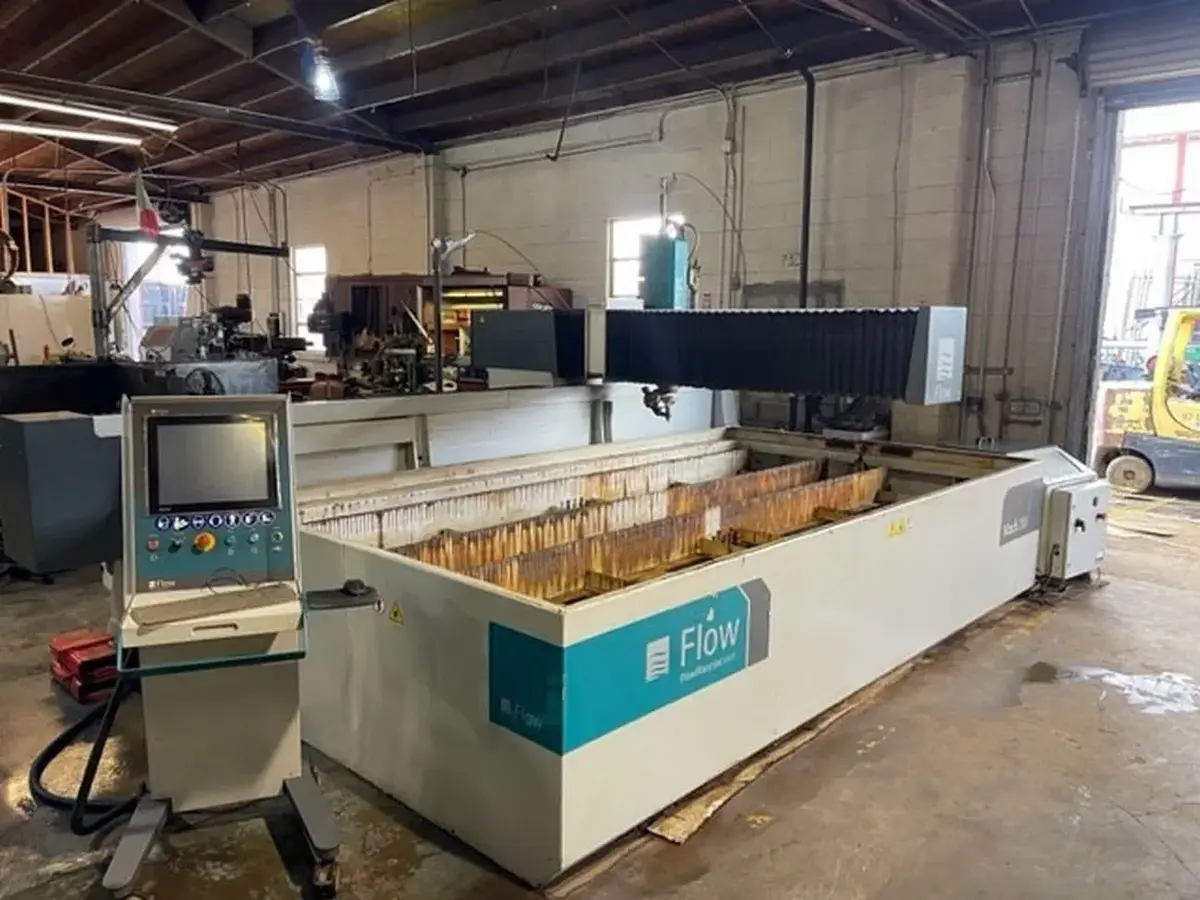

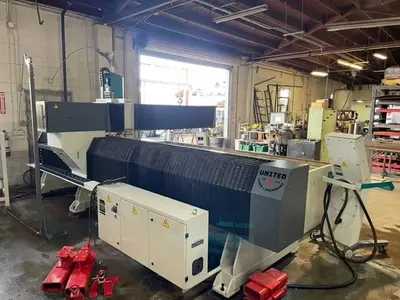

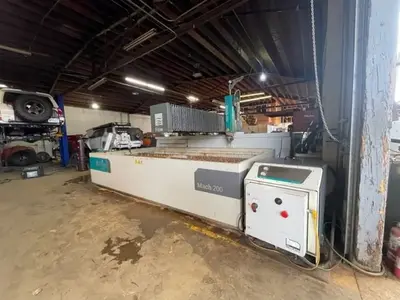

6' x 13' Flow M200-420 Pivot+ CNC Waterjet Cutting System, 2020- 5-Axis head
Have one to sell?
ConditionUsed
1 available

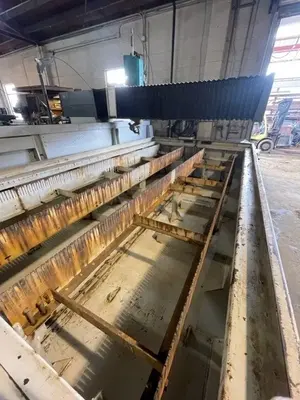

Table Size: 72” X 156”

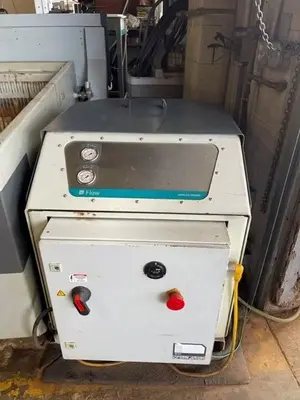

Pump Output Pressure: 60,000 PSI
Z - Axis Travel: 8”
Contouring Speed Maximum: 300” / Min
Rapid Traverse: 400” / Min
Mixing Tube for Standard Waterjet: 4” Length
Mixing Tube for Pivot+ Waterjet: 3”
Standoff: 0.10”
Pivot+ Waterjet: 60° Tilt Max
Power Supply: 3 - Phase
Voltage / Frequency: 480 V / 60 HZ
Main Circuit Breaker Size: 20 Amp
5-Axis Pivot Plus Bevel and Taper Compensating Head

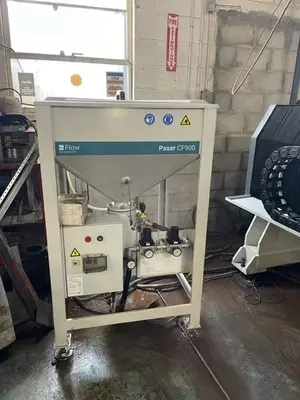

900 Lb Abrasive Hopper
Automatic Taper Compensation
Roll Around Controller
Automatic Collision Detection
Automatic Part Time Estimation

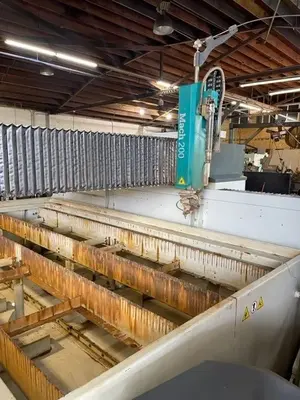

Paser 4 Cutting Head System
Z Axis 8" Fully Programmable Servo Driven
Imperial
| Pump Output | 60,000 PSI |
| X | 72" |
| Y | 156" |
| Z | 8" |
| Table Size-W | 72" |
| Table Size-L | 156" |
| Power | 30 hp |
| Control | CNC |
Table Size: 72” X 156”
Pump Output Pressure: 60,000 PSI
Z - Axis Travel: 8”
Contouring Speed Maximum: 300” / Min
Rapid Traverse: 400” / Min
Mixing Tube for Standard Waterjet: 4” Length
Mixing Tube for Pivot+ Waterjet: 3”
Standoff: 0.10”
Pivot+ Waterjet: 60° Tilt Max
Power Supply: 3 - Phase
Voltage / Frequency: 480 V / 60 HZ
Main Circuit Breaker Size: 20 Amp
5-Axis Pivot Plus Bevel and Taper Compensating Head
900 Lb Abrasive Hopper
Automatic Taper Compensation
Roll Around Controller
Automatic Collision Detection
Automatic Part Time Estimation
Paser 4 Cutting Head System
Z Axis 8" Fully Programmable Servo Driven
