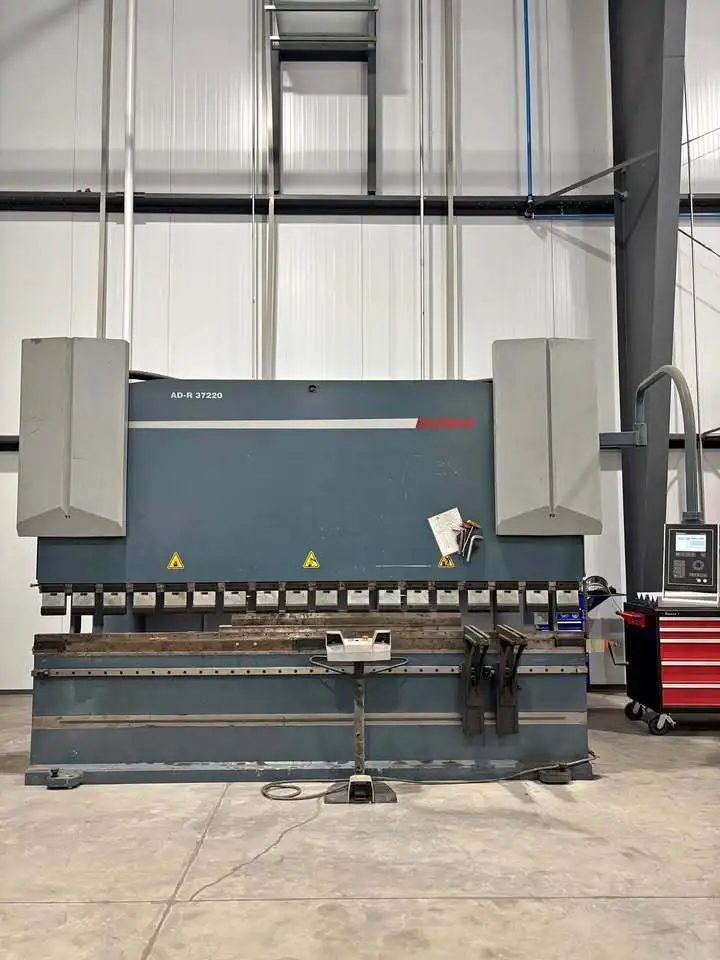

242 Ton x 12' Durma AD-R 37220 CNC Press Brake, 2014- Delem DA-52S Control
Have one to sell?
ConditionUsed
1 available
Bending Power: 220 Metric Tons / 242 US Tons
Bending Length: 3700 mm / 12 Feet.
Distance Between Columns: 3100 mm / 122 inches.
Stroke: 265 mm / 10.4 inches.
Daylight (Open Height): 530 mm / 20.87 inches.
Throat Depth: 410 mm / 16 inches.
Approaching Speed: Approx. 100-140 mm/sec.
Voltage: 230V or 440V /3 phase 60hz.
Delem DA-52s CNC

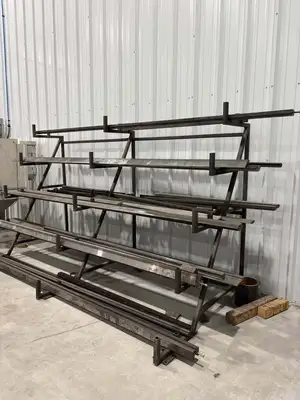

Punch and Dies Included along with the Rack
Imperial
| Tonnage | 245 T |
| Type | HYD |
| Overall Length | 12.08' |
| Between Housings | 10.17' |
| Stroke | 10.4" |
| # Axis | 3 |
| Control | CNC (Delem-DA52) |
| Weight | 32,000 lbs. |
Bending Power: 220 Metric Tons / 242 US Tons
Bending Length: 3700 mm / 12 Feet.
Distance Between Columns: 3100 mm / 122 inches.
Stroke: 265 mm / 10.4 inches.
Daylight (Open Height): 530 mm / 20.87 inches.
Throat Depth: 410 mm / 16 inches.
Approaching Speed: Approx. 100-140 mm/sec.
Voltage: 230V or 440V /3 phase 60hz.
Delem DA-52s CNC
Punch and Dies Included along with the Rack
