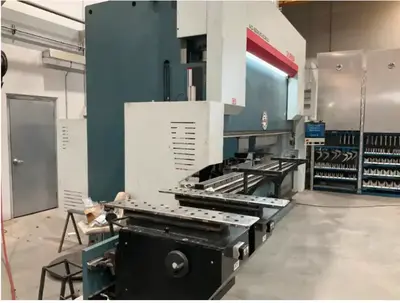

440 Ton x 13' Durma AD-Servo 40400 CNC Press Brake, 2022- CNC Sheet Followers, 6-Axis Backgauge
Have one to sell?
ConditionUsed
1 available
Capacity: 400 Ton
Overall Length of Bed: 13.3'
Control: Sky 22

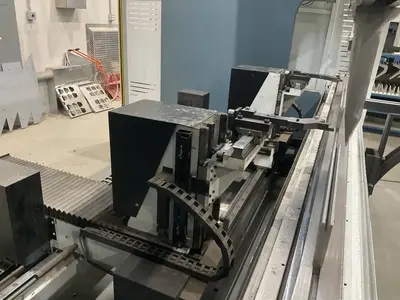

Back Gauge: 6-Axis
Distance Between Housings: 133.86"
Stroke: 14.37"
Throat Depth: 20"
Open Height: 24.8"
Closed Height: 10.43"
Rapid Speed Y-Axis: 6.30 IPS
Working Speed (Y-Axis): .39 IPS
Retraction Speed (Y-Axis): 6.30 IPS
Back Gauge Travel (X-Axis): 25.59"
Back Gauge Speed: (X-Axis): 19.69 IPS
Back Gauge Travel (R-Axis): 9.84"
(2) CNC Front Sheet Followers
Wila Style Hydraulic Top and Bottom Clamping

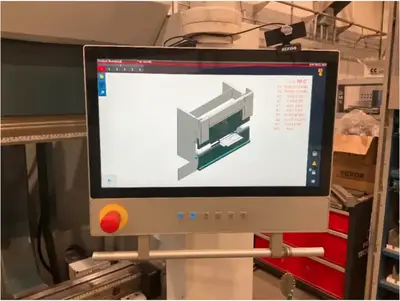

Sky CNC Controller w/Offline Software
1500 Hours
Laser Angle Measurement
CNC Crowning
Imperial
| Tonnage | 440 T |
| Type | HYD |
| Overall Length | 13' |
| Between Housings | 11.15' |
| Stroke | 14.37" |
| # Axis | 6 |
| Control | CNC (Sky 22) |
| Dimensions | 227" x 84" x 136" |
| Weight | 63,000 Lbs. |
Capacity: 400 Ton
Overall Length of Bed: 13.3'
Control: Sky 22
Back Gauge: 6-Axis
Distance Between Housings: 133.86"
Stroke: 14.37"
Throat Depth: 20"
Open Height: 24.8"
Closed Height: 10.43"
Rapid Speed Y-Axis: 6.30 IPS
Working Speed (Y-Axis): .39 IPS
Retraction Speed (Y-Axis): 6.30 IPS
Back Gauge Travel (X-Axis): 25.59"
Back Gauge Speed: (X-Axis): 19.69 IPS
Back Gauge Travel (R-Axis): 9.84"
(2) CNC Front Sheet Followers
Wila Style Hydraulic Top and Bottom Clamping
Sky CNC Controller w/Offline Software
1500 Hours
Laser Angle Measurement
CNC Crowning
