90 Ton x 10' Cincinnati PF+8 CNC Press Brake, 2017- Low Hours

90 Ton x 10' Cincinnati PF+8 CNC Press Brake, 2017- Low Hours

Have one to sell?
385-855-1585
Sales@usedfabmachines.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Press Brakes
Manufacturer:
CINCINNATI INC
Model:
90PF-8
Year:
2017
Status:
For Sale
Country:
United States
Tonnage90 T81.647 t
TypeHYDHYD
Overall Length10'3 m
Between Housings8'2.4 m
Stroke8"203.2 mm
ControlCNC (Cincinnati PC Controller)CNC (Cincinnati PC Controller)
Dimensions14' x 5' x 10' H14' x 5' x 10' H
Weight17,000 lbs.17,000 lbs.

Capacity: 90T
Overall Bed Length: 120"
Distance Between Housings: 96"
Stroke Length: 8"
Open Height: 15"
Closed Height: 7"
Throat Clearance: 7"
Approach Speed: 260 IPM
Forming Speed: 80 IPM
Return Speed: 280 IPM
Ram Repeatability: +/-0.0004"
Motor: 15 HP
Power Requirement: 460V 3 Phase

All specifications are assumed to be correct but must be confirmed by the purchasing entity

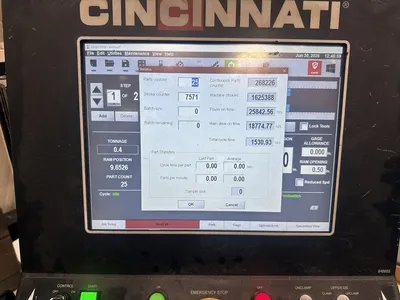

Cincinnati PC- Based CNC Control
CNC X Axis, Manual R

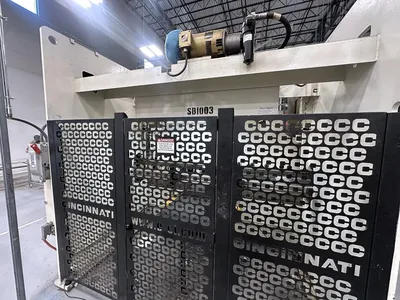

Light Curtains
