Equipment
Waterjet Cutters

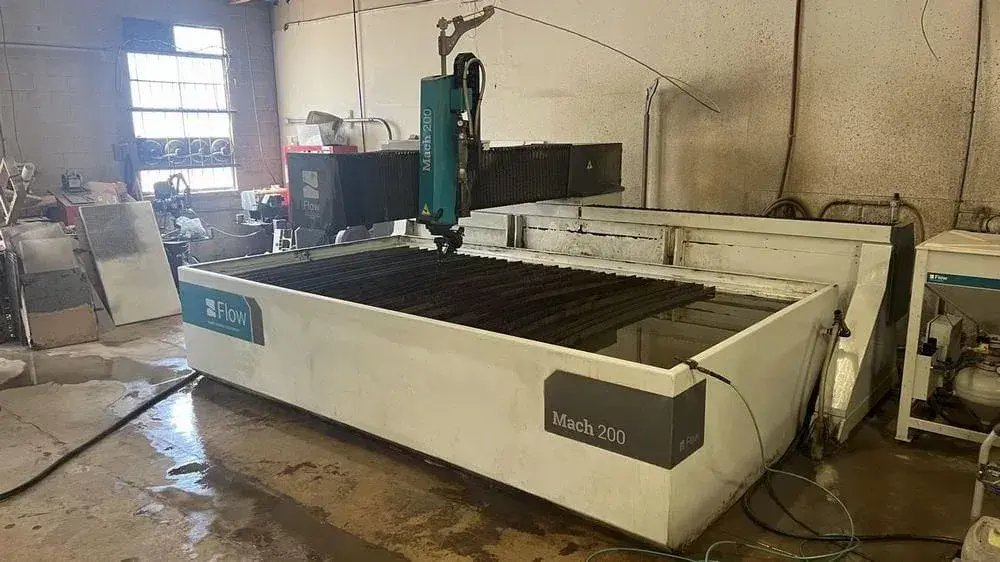

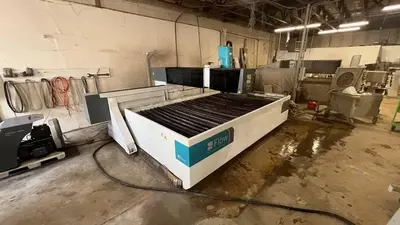

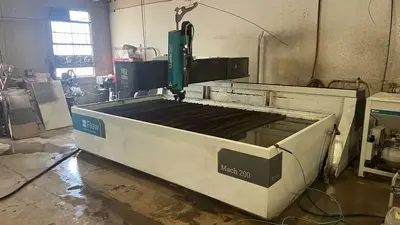

6' x 13' Flow Mach 200 4020 CNC Waterjet, 2019- Pivot+ Head

6' x 13' Flow Mach 200 4020 CNC Waterjet, 2019- Pivot+ Head

Have one to sell?
385-855-1585
Sales@usedfabmachines.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Waterjet Cutters
Manufacturer:
FLOW
Model:
MACH 200-4020
Year:
2019
Status:
For Sale
Country:
United States
Pump Output60,000 PSI4,136.8 bar
X72"1,828.8 mm
Y156"3,962.4 mm
Z7"177.8 mm
Table Size-W72"1,828.8 mm
Table Size-L156"3,962.4 mm
Power30 hp22.4 kW

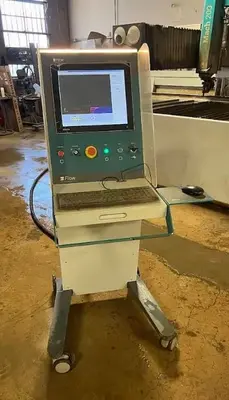

ControlCNC (Flowmaster)CNC (Flowmaster)

Table Size: 72” X 156”
Pump Output Pressure: 60,000 PSI
Z - Axis Travel: 8”
Contouring Speed Maximum: 300” / Min
Rapid Traverse: 400” / Min
Mixing Tube for Standard Waterjet: 4” Length
Mixing Tube for Pivot+ Waterjet: 3”
Standoff: 0.10”
Pivot+ Waterjet: 60° Tilt Max
Power Supply: 3 - Phase
Voltage / Frequency: 480 V / 60 HZ
Main Circuit Breaker Size: 20 Amp
Hours on Meter: 3,600

All specifications are assumed to be correct but must be confirmed by the purchasing entity

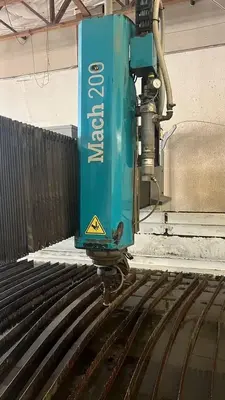

5-Axis Pivot plus Bevel and Taper Compensating head

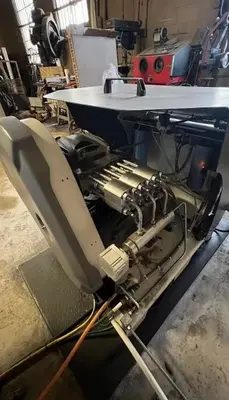

Hyplex Pump

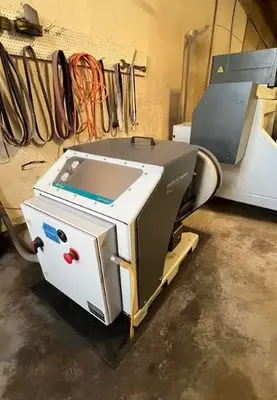

Paser CF900 Hopper, 900 lb. capacity
