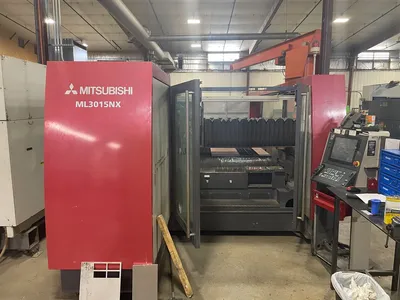

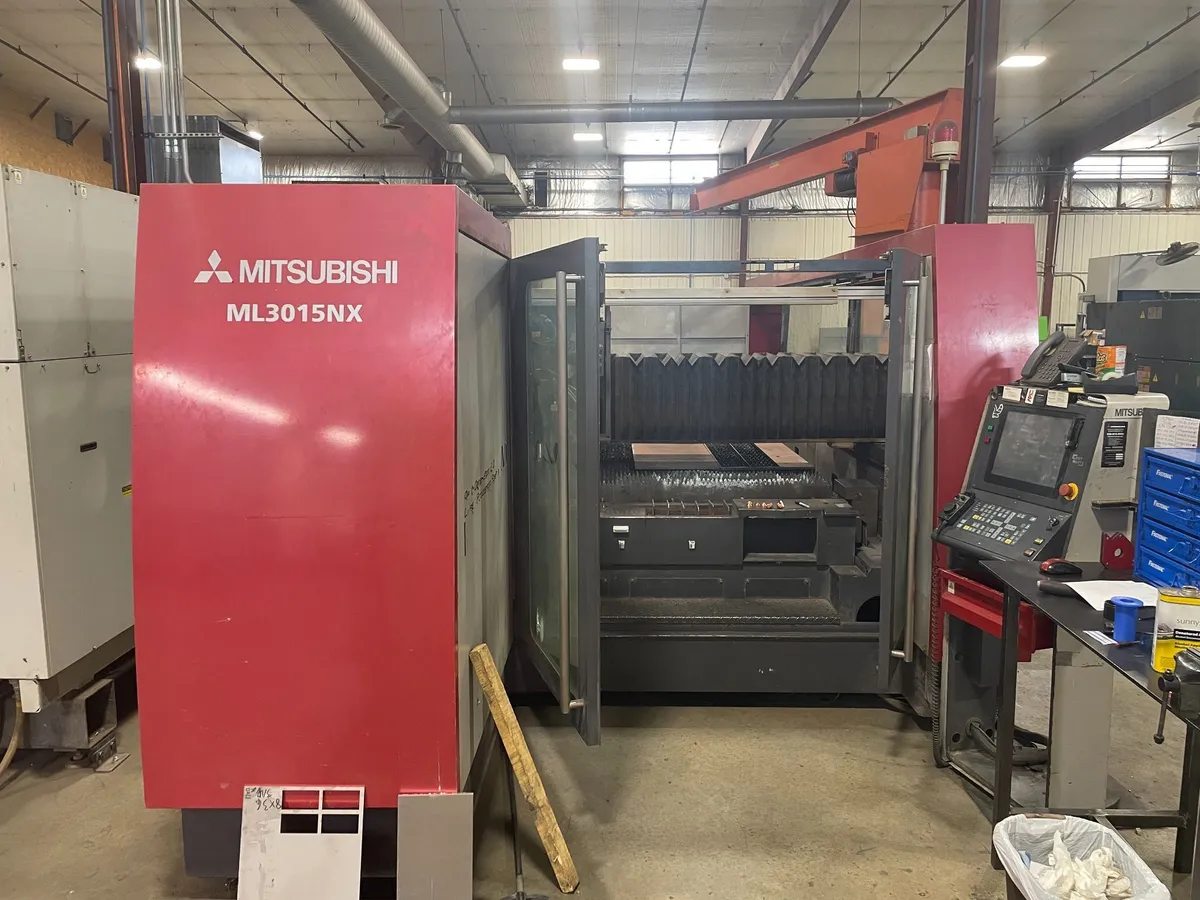

5' x 10' Mitsubishi ML3015 NX 60XF Co2 Laser, 2011- All Major Maintenance done in last 12 months

Table Size: 120" x 60"
Machine Structure: X-Y Precision Rack & Pinion
Z Precision Linear Drive
Table Pass Height: 34.6 in.
X-Axis Stroke: 125" // 3200 mm
Y-Axis Stroke: 63" // 1600 mm
Z-Axis Stroke: 4.57" // 150 mm
Max Work Piece Size: 120 x 60 in.
Processing Access: Manual Door
Rapid Travel (X,Y) (in./min.): 4724 (single axis), 6680 (simultaneous)
Max Processing Feedrates (in./min.): 2360
Positioning Precision (in.): 0.0019/20 (X, Y axis, 0.0039/4 (Z-axis)
Repeatability (in.): +- 0.00039 (X, Y axis)
Drive Motor Type: Intelligent Smart Serve
Max Workpiece Weight: 2050 lb
Shuttle Table: Yes
Floor Space Required: 1184 sq. ft.
Additional Features:
- 6000W configuration
- Agile Z-axis with arc evade and high-speed height sensor for top-speed cutting
- New structural configuration handles forces up to 4 Gs in Z-axis and 2
- Gs in X- and Y-axes
- Diamond-Path Technology provides beam stability at speeds up to2,360 inches per minute
- High-reflection, low-distortion mirrors
- One-piece cast frame

**Motivated Seller**
