| Tonnage | 247 T | 224.075 t |
| Type | HYD | HYD |
| Overall Length | 13' | 4 m |
| Between Housings | 10.3' | 3.1 m |
| Stroke | 15.7" | 398.78 mm |
| # Axis | 8 | 8 |
| Control | CNC (ADcontrol50) | CNC (ADcontrol50) |
| Dimensions | 200"L x 80"W x 126"H | 200"L x 80"W x 126"H |
| Weight | 31,000 lbs. | 31,000 lbs. |
247 US Tons capacity
Y1, Y2 cylinder ram control with independent feedback
157” maximum working length, 124” between side frames
15.7” stroke
15.7” throat in side-frames
24.8” open height (without tools)

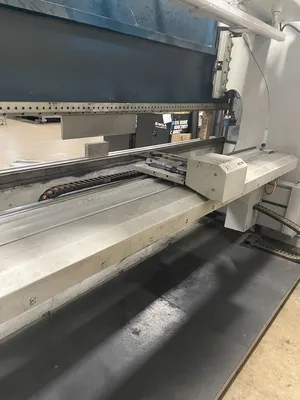

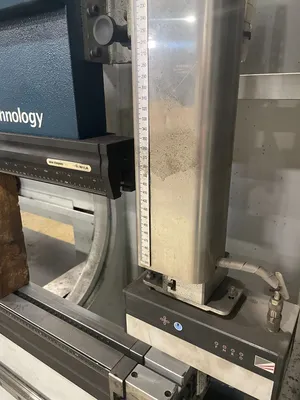

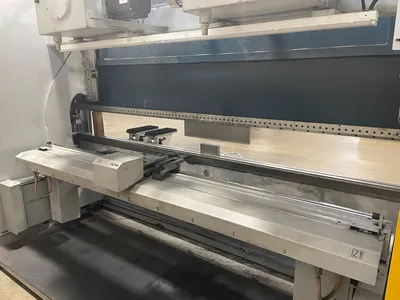

5-axes back gauge: 24” (X), 8” vertical (R), with full length
(Z1/Z2) moving finger stops, 4” (X1) ‘prime’ (taper work)

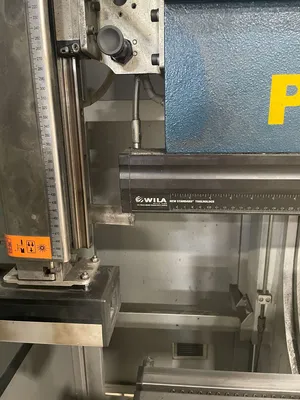

WILA New Standard upper and lower hydraulic clamping
WILA programmable motorized crowning
Lasersafe Iris block laser protection
(2) Adjustable front support arms
(2) 15 HP motors
Voltage: 480V/60Hz/3Phase

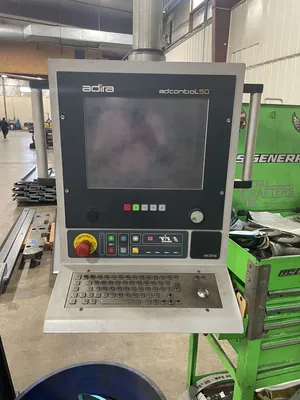

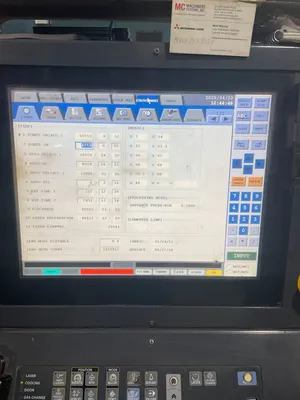

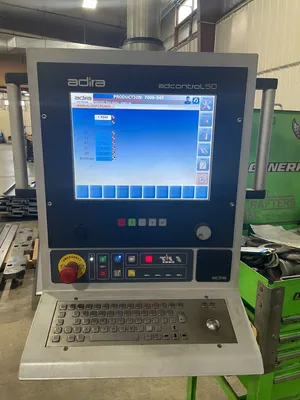

AdControl50 touch screen graphical conversational control

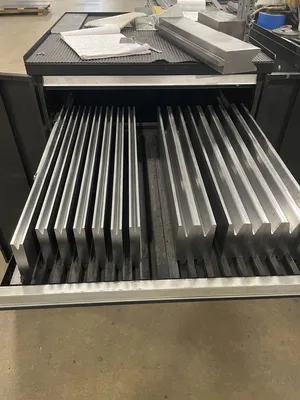

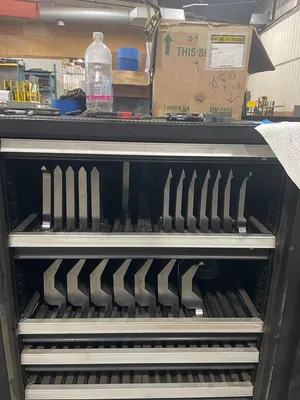

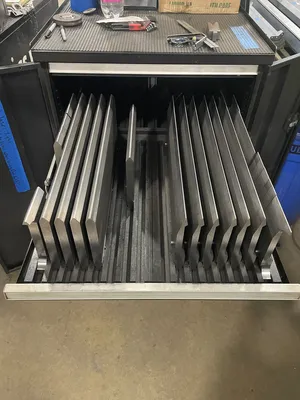

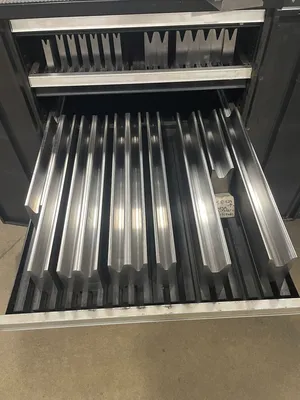

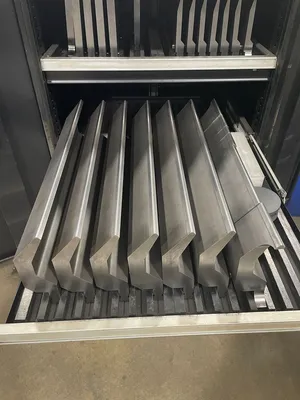

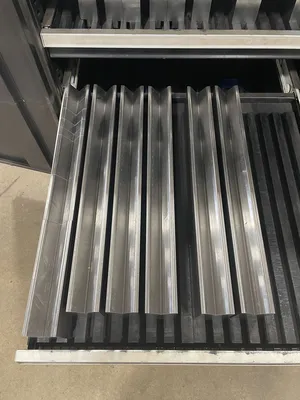

Over 50K in Wila Tooling- Tooling List available by request

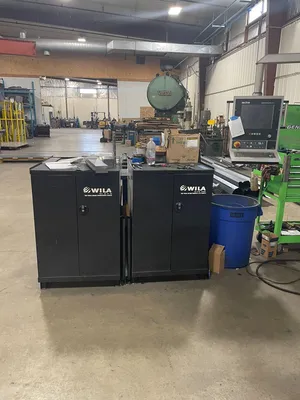

Wila Tooling Carts
This equipment has been sold. Similar equipment available now is shown below.
