1/4" x 13' Adira GHS Shear, 2003- Adjustable Blade Gap

Name: Used Fab Machines
Address: 2680 Fairmount Blvd,, Cleveland, OH, 44106, US
Telephone: 385-855-1585

Have one to sell?

385-855-1585

Sales@usedfabmachines.com

ConditionUsed

Quantity

1 available

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines (1)

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines (2)

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines (3)

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines (4)

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines (5)

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines (6)

2003 ADIRA GHS-0640 Power Squaring Shears (Inch) | Used Fab Machines

Have one to sell?

Overview

Type:

Power Squaring Shears (Inch)

Manufacturer:

ADIRA

Model:

GHS-0640

Year:

2003

Status:

For Sale

Country:

United States

ImperialMetric

Max Thickness	0.25"	6.35 mm
Length of Blade	160"	4.1 m
Hyd/Mech	Hyd	Hyd
Back Gauge	40"	1,016 mm
SPM	15 strokes/min.	15 strokes/min.
Dimensions	15'L x 6'W x 5H	15'L x 6'W x 5H
Weight	19,500 lbs	19,500 lbs

Cutting Capacity (Mild Steel): 6.5 mm (0.25")
Cutting Length: 4050 mm (approx. 160 inches)
Stainless Steel Capacity: 4 mm (approx. 10 gauge)
Back Gauge Range: 1000 mm (approx. 39-40")
Motor Power: 15 kW

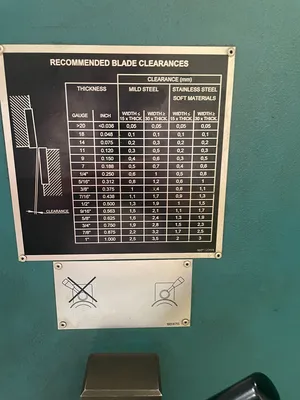

Blade Gap Adjustment: 0.05 - 1.1 mm
Number of Holddowns: 19
Voltage 220/440V, 3 Phase 60 Hz.

All specifications are assumed to be correct but must be confirmed by the purchasing entity

Programmable Go To Backgauge
Stroke Control
Adjustable Blade Gap
