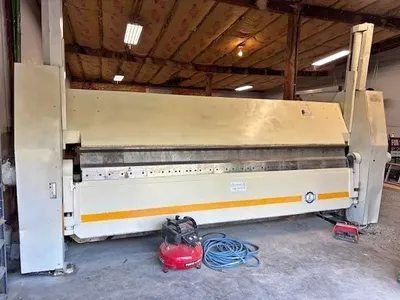

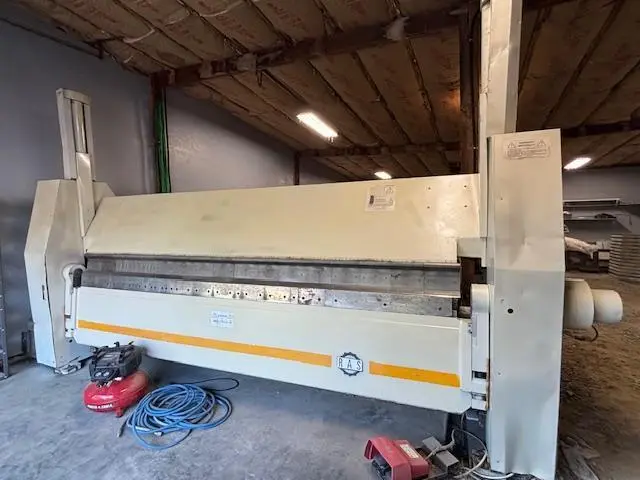

9 Gauge x 10' RAS 74.30 CNC Folding Machine, 2002- New Control

MAX. FORMING CAPACITY AT FULL LENGTH -- 9 GAUGE (MILD STEEL)
MAX. LENGTH OF FORMING ---------------- 126"
SMALLEST PERMISSIBLE INNER BEND RADIUS- 1.25 X GAUGE
(FULL WIDTH)
MINIMUM FLANGE HEIGHT ----------------- 6 X GAUGE
CLAMPING BEAM MAXIMUM SPEED UP -------- 3.60"/SEC
CLAMPING BEAM MAXIMUM SPEED DOWN ------ 1.57"/SEC.
MAXIMUM FOLDING SPEED ----------------- 74 DEGREES/SEC.
FOLDING ANGLE SETTING RANGE ----------- 0 - 180 DEGREES
CNC FOLDING BEAM STROKE --------------- 3.15"
CNC LOWER BEAM STROKE ----------------- 3.15"
CLAMPING BEAM STROKE ------------------ 15.75"
BACK GAUGE POSITIONING ACCURACY -------- +/- .004"
BACK GAUGE MAXIMUM POSITIONING TIME ---- 3 SECONDS
BACK GAUGE MINIMUM POSITION ------------ .394"
BACK GAUGE MAXIMUM POSITION ------------ 122"

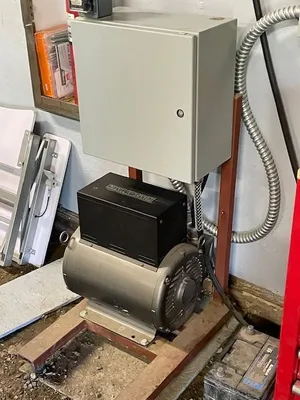

MOTOR DRIVE POWER --------------------- 12 H.P.
ELECTRIC ----------------------------- 220 Volts , 3 PH, 60 Hertz, IP 54, 24V DC ,
AMPERAGE ------------------------------ 40 AMPS
