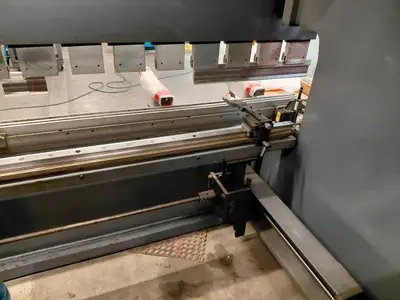

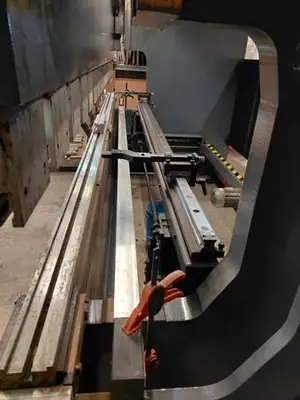

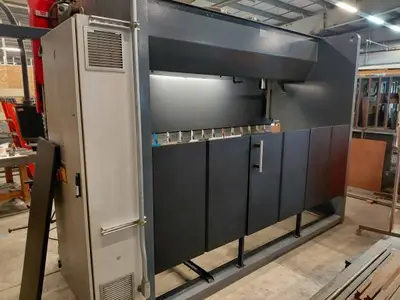

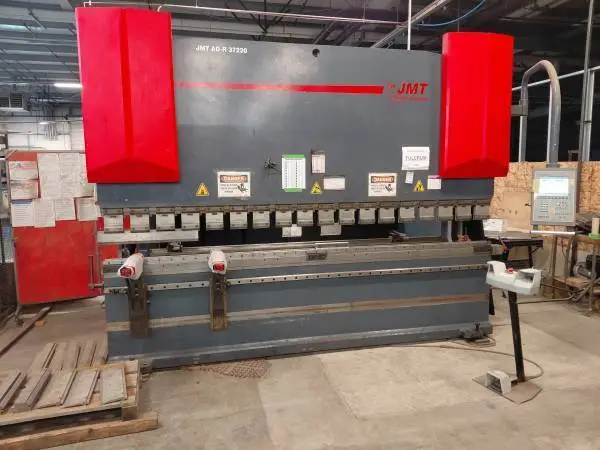

242 Ton x 12' Durma/JMT AD-R 37220 CNC Press Brake, 2012- Delem DA-56, With Tooling
Have one to sell?
ConditionUsed
1 available
Bending Power: 220 Metric Tons / 242 US Tons
Bending Length: 3700 mm / 12 Feet.
Distance Between Columns: 3100 mm / 122 inches.
Stroke: 265 mm / 10.4 inches.
Daylight (Open Height): 530 mm / 20.87 inches.
Throat Depth: 410 mm / 16 inches.
Approaching Speed: Approx. 100-140 mm/sec.

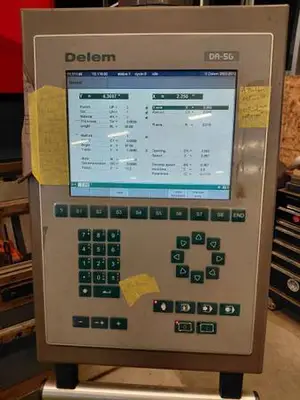

Delem DA-56 CNC Control

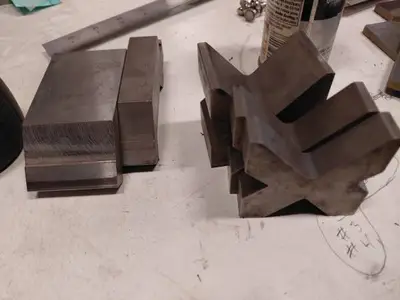

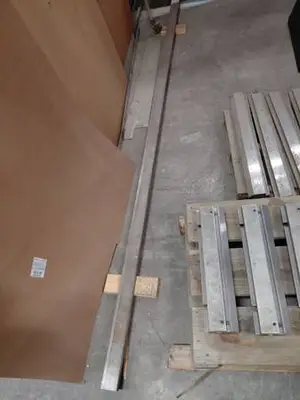

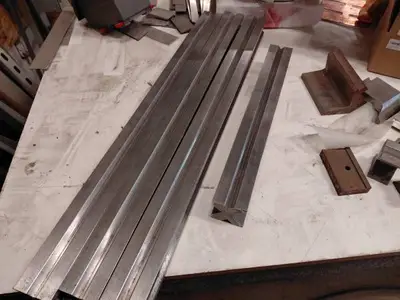

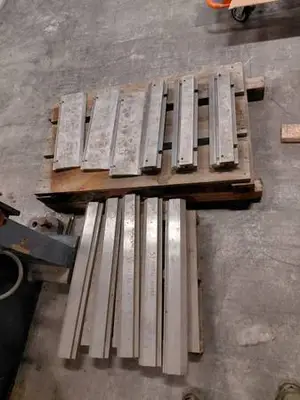

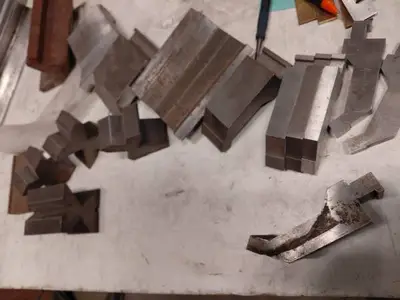

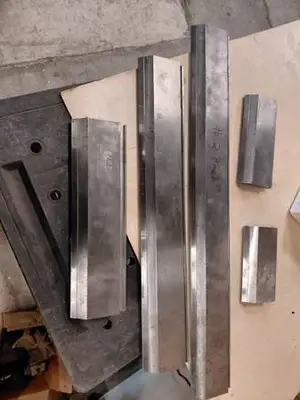

Tooling pictured Included (punch & 4-way die)

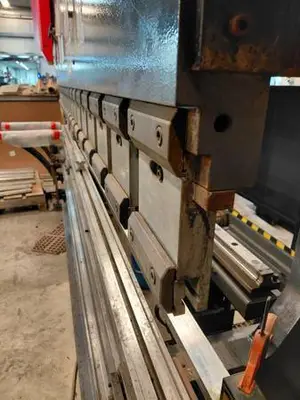

American/European Tooling holders upper and lower

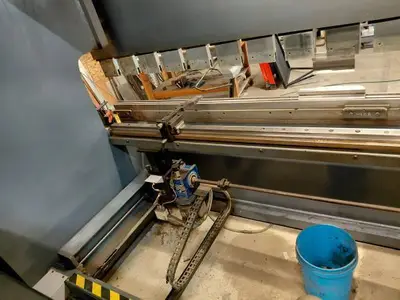

CNC Controlled X & R- Axis
Manual Crowning

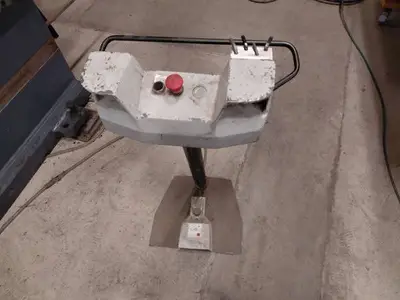

Pedestal foot control
Imperial
| Tonnage | 245 T |
| Type | HYD |
| Overall Length | 12.08' |
| Between Housings | 10.17' |
| Stroke | 10" |
| # Axis | 2 |
| Control | CNC (Delem DA-56S) |
| Dimensions | 195"L x 70"W x 114"H |
| Weight | 31,000 lbs. |
Bending Power: 220 Metric Tons / 242 US Tons
Bending Length: 3700 mm / 12 Feet.
Distance Between Columns: 3100 mm / 122 inches.
Stroke: 265 mm / 10.4 inches.
Daylight (Open Height): 530 mm / 20.87 inches.
Throat Depth: 410 mm / 16 inches.
Approaching Speed: Approx. 100-140 mm/sec.
Delem DA-56 CNC Control
Tooling pictured Included (punch & 4-way die)
American/European Tooling holders upper and lower
CNC Controlled X & R- Axis
Manual Crowning
Pedestal foot control
