| Tonnage | 90 T | 81.647 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 8.5' | 2.6 m |
| Stroke | 8" | 203.2 mm |
| # Axis | 3 | 3 |
| Control | CNC (Cincinnati BX Controller) | CNC (Cincinnati BX Controller) |
Capacity: 90 Tons
Overall Length of Bed & Ram: 10’
Distance Between Housings: 8’ 6-3/4”
Stroke: 8”
Open Height: 15”
Closed Height: 7”
Throat Clearance: 16”
Approach: 400 IPM
Form: 10-24 IPM
Return: 80” – 240 IPM
Main Motor: 15 HP
X – Axis In/Out Gage with Manual R- Axis Up/Down

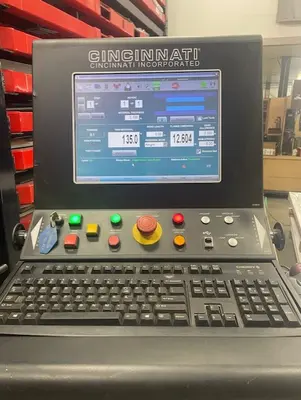

Cincinnati BX Controller
Narrow Filler Block
Wila Manual Crowning
Electric Foot Switch
This equipment has been sold. Similar equipment available now is shown below.
