| Tonnage | 73 T | 66.225 t |
| Type | HYD | HYD |
| Overall Length | 82" | 2.1 m |
| Between Housings | 69" | 1.8 m |
| Stroke | 7.87" | 199.9 mm |
| # Axis | 4 | 4 |

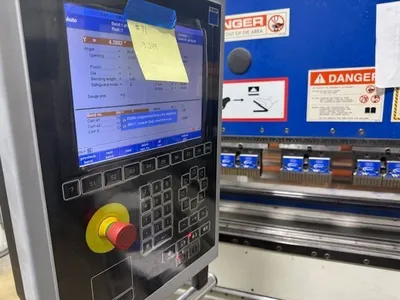

| Control | CNC (Delem DA-56S) | CNC (Delem DA-56S) |
| Dimensions | 102"L x 69"W x 92"H | 102"L x 69"W x 92"H |
| Weight | 12,500 Lbs. | 12,500 Lbs. |
TONNAGE ......................... 73
BED LENGTH .. ................... 80"
DISTANCE BETWEEN HOUSINGS ....... 69"
LENGTH BETWEEN THE HOUSINGS ..... 93"
STROKE .......................... 7.87"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 5.9"
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM
BENDING ........... 35 IPM
RETURN ............ 472 IPM
MAIN MOTOR HP ................... 10
MAX OPERATING PRESSURE ......... 4,466 PSI
MOTOR SPECS ..................... 3 PH / 460 V

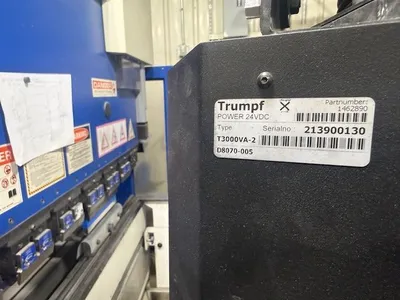

Delem T3000VA-2- DA-56
Palm Buttons
Wilson European Upper Quick Clamps
4-Axis Backgauge- X, R, Z1/Z2
