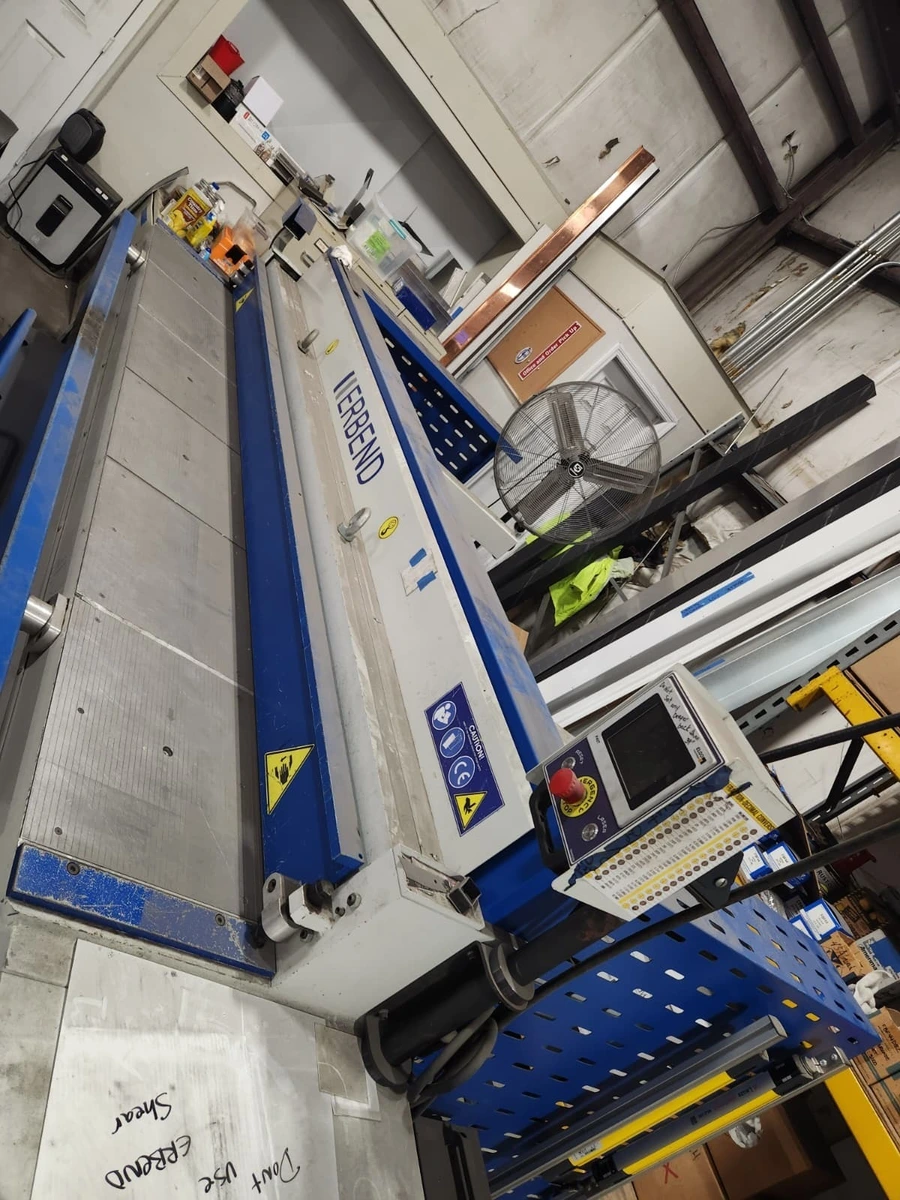

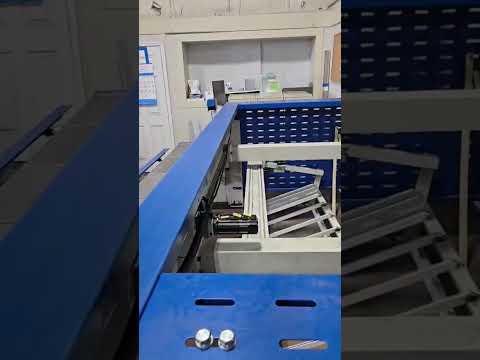

10' x 14 ga ERBEND EMS 3220 Shear, 2022 - Great Condition

SPECIFICATIONS:
Cutting Length: 10.5 ft (3200mm)
Mild Steel: 14 ga (2mm)
Stainless: 18 ga (1.2mm)
Aluminum: 3mm
Cut per minute: 35
Motor Power: 4Kw

29.5 INCH SERVO MOTORIZED BACK GAUGE SYSTEM
700W servo drive and motor with +/- 0,1 mm accuracy
32/32 thread ballscrew system with +/- 0,05 mm accuracy
Aluminum sigma profile sheet support
One fixed, one movable, full body protective, vertical light barriers
Side fences to avoid unwanted interventions
ERCUT NC CONTROL SYSTEM
HMI - 7 inch TFT display touchscreen with 800x480 resolution
Ethercat + USB inputs and IP65 protection class
128 MB memory for 10.000 programmed with 10 steps
Manual,semi-automatic and automatic functions
Parametrical settings for retraction, pneumatic support and back gauge
Language selection (specific languages can be imported)
FRICTION FREE GUILLOTINE BLADE GEOMETRY AND DUAL SIDED BLADES
Thanks to the curvy machined blade geometry, blades never touch each other which sustains a much more longer blade life without sacrificing cutting precision.
Both sides of the blades can be used by switching easily
SPRING LOADED HOLD-DOWN BAR AND POLYURETHANE MATERIAL CLAMPING SURFACE
Thanks to the spring load, the sheet is clamped and fixed with an ideal pressure for cutting
With the polyurethane touching surface (shown in red below), your material is never scratched

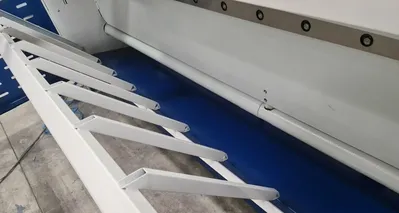

FIXED SIDE SQUARING GAUGE AND STAINLESS FEEDING TABLE WITH RULERS ON EACH 19.68 INCH LENGTH
RETRACTABLE FRONT SHEET SUPPORT BAR
From the cutting line to the edge, it is able to support max 36.6 inch long sheets
Smooth and light movement only by pulling from the middle
LED ILLUMINATION OF CUTTING AREA AND CUTTING LINE
