Capacity
mild steel 10' x 14 ga.
stainless steel 10' x 20 ga.
Soft Aluminum 10’ x 12 ga
Strokes per minute 35
Motor 5.3 HP
Back gauge range 39-1/2"
Approximate Dimensions L x W x H 142” x 71” x 52”
Electrics 3/60 32 Amps Full Load 220V 3 Phase
Net weight - approximately 7,300 lbs.

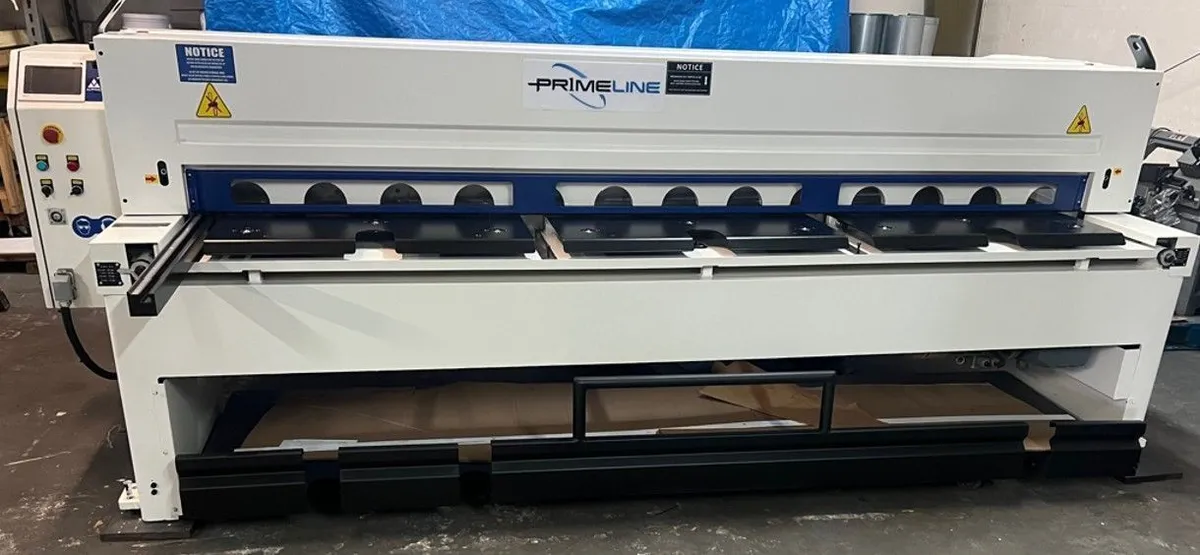

• Mechanical Power Squaring Shear with Manual Front-Operated Backgauge, Pneumatic Sheet Support Device with Front Return and Material Cart
• NC Go-To Power Back Gauge stores 100 programs

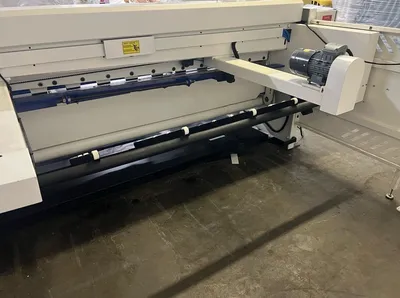

• Pneumatic Rear Sheet Support Device with Front / Rear Return
• Material Table/Cart to catch cut parts returned to front of machine
• Front Support Arms
• Set of high-carbon high-chrome blades
• Solid, mechanical finger guard/holddown with non-marking pad
• All steel frame
• All moving components in maintenance-free bearings
• 40" Squaring arm (at left)
• geared brake-motor.
• Low voltage at the controls.
• Emergency stop palm button.
• Single/inching stroke control
• Movable electric foot control on a trailing lead
• Operating manual and parts list
• Electrics for 3/60/220 ( NOT COMPATIBLE WITH ROTARY PHASE CONVERTER)
