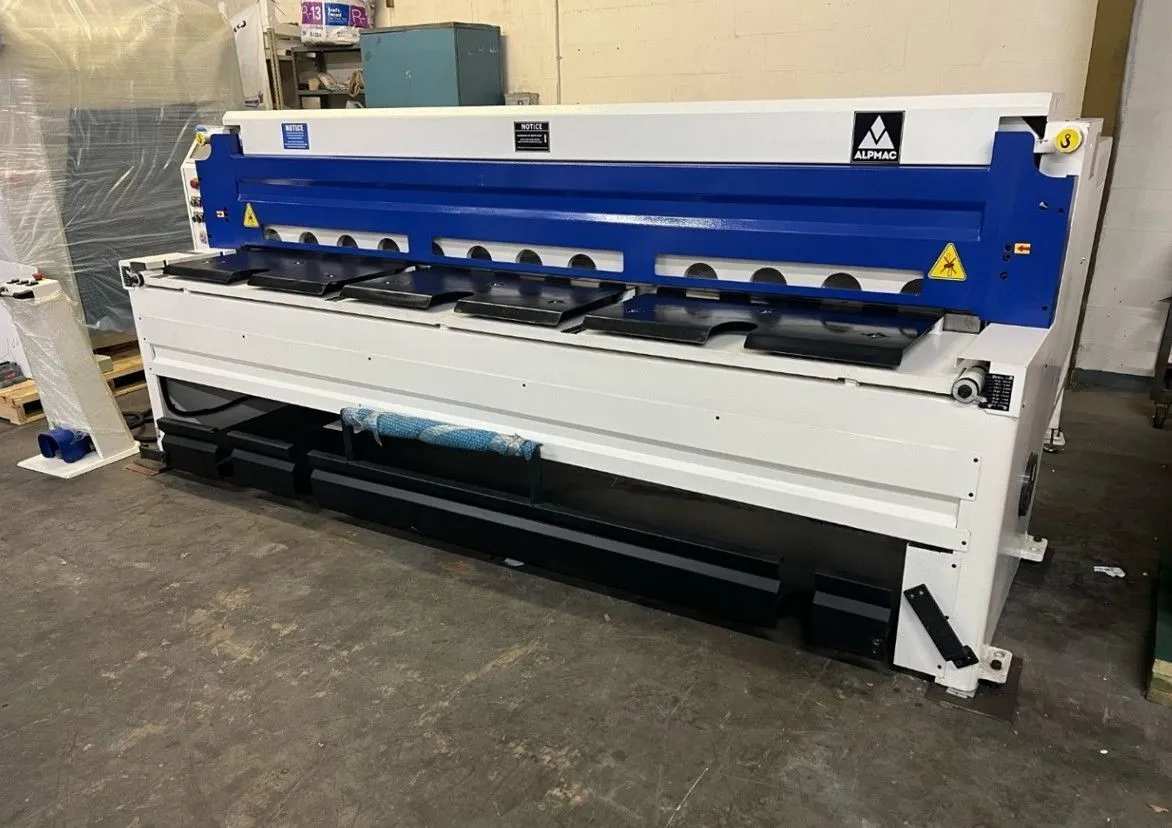

10' x 10 ga - PRIMELINE M1010 - Shear 2022 - Demo

All steel frame
All moving components in maintenance-free bearings
39” BG with ELGO NC Backgauge Single Cut Option
Programmable Option 10 Steps Per program 100 Programs
40" Squaring arm (at left)
Set of high-carbon high-chrome blades
Front 2 ea. support arms
Light gauge pneumatic sheet support
Front or rear drop ( 14 ga MS max capacity )
Heavier metals sheet support must be in rear drop position.
Sheet Cart on Wheels
Solid, mechanical finger guard/holddown with non-marking pad

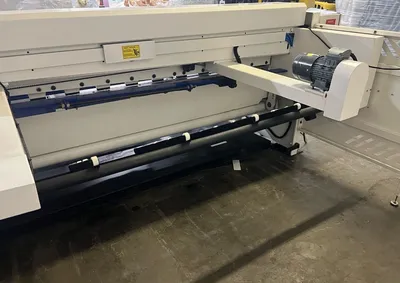

Virtually noiseless geared brake-motor.
Electrics for 3/60/220/440.

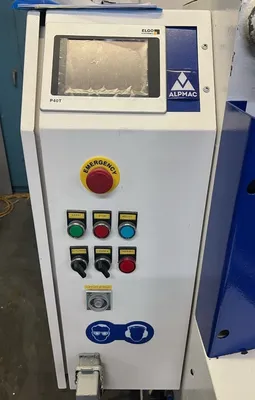

Low voltage at the controls.
Emergency stop palm button.
Single/inching stroke control
Movable electric foot control on a trailing lead
Operating manual and parts list
SPECIFICATIONS:
Strokes per minute – 35
Rake angle of upper blade - 1.5⁰
Cutting length – 122”
Motor – 10 HP
220 V 3 Phase ( Shear is NOT compatible with rotary phase convertor)
Back gauge range - 39"
Approximate Dimensions L x W x H 145” x 86” x 66”
Net weight - approximately 9,000 lbs
