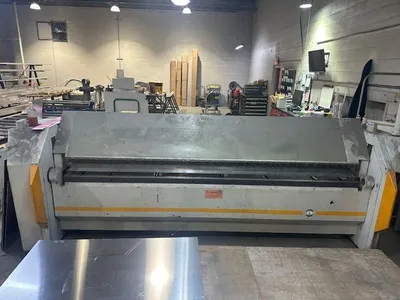

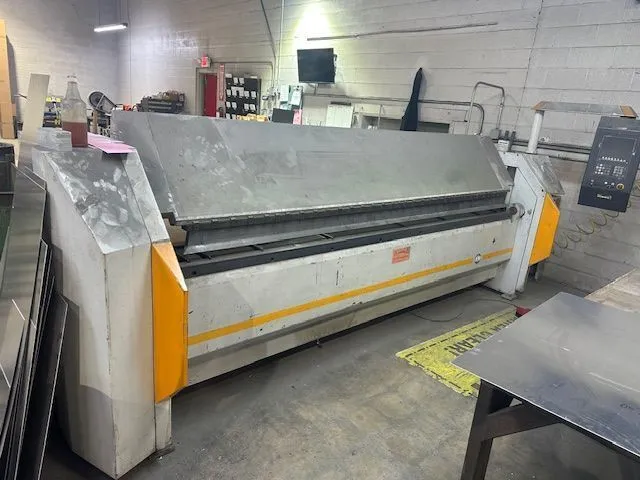

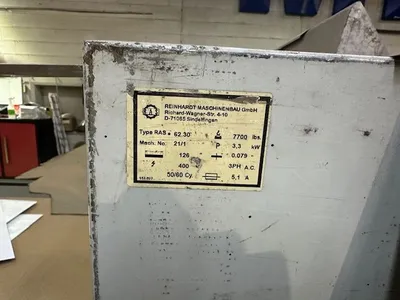

14 Gauge x 10' RAS 62.30 CNC Folder

The RAS 62.30 is a staple of 1990s and early 2000s sheet metal shops, known for its speed and "one-man operation" design. For a late 90s model, equipped with the System 5000 CNC control.

Below are the technical specifications for the 14-gauge x 10' (3200 mm) configuration:

Core Specifications

Max Sheet Thickness | 14 Gauge | 2.0 mm |
Max Working Length | 125.9" | 3200 mm |
Upper Beam Open Height | 7.87" | 200 mm |
Upper Beam Speed | 1.0" / sec | 26 mm/s |
Folding Beam Speed | 80° / sec | 80° / sec |
Folding Beam Adjustment | 0.2" (Max) | 5.5 mm |
Working Height | 33.5" | 850 mm |

Dimensions & Weight

Machine Length: ~170.0" (4340 mm)
Machine Width: ~83.7" (2100 mm)
Machine Height: ~54.5" (1380 mm)
Approximate Weight: 7,725 lbs (3500 kg)

Backgauge System

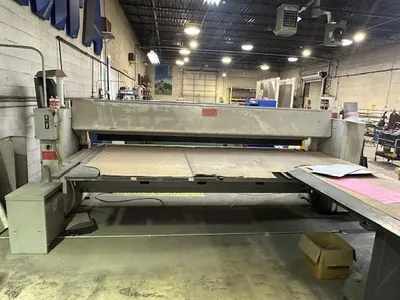

The 62.30 typically featured a high-speed backgauge with pop-up fingers.

Measuring Range (Standard): 0.24" to 61" (6–1550 mm)
Accuracy: +/- 0.006" (+/- 0.15 mm)
Speed: Can traverse its full length in under 2 seconds.

Power Requirements

Drive Power (Upper Beam): 1.5 hp (1.1 kW)
Drive Power (Folding Beam): 3.0 hp (2.2 kW)
Air Pressure Required: 72.5 PSI (5 bar) — *Note: This is usually for the pneumatic pop-up fingers and clamping assists.

Key Features of the Late 90s Era

-Control: Most units from 1997–1999 used the RAS System 5000. It features a graphical interface that allows the operator to draw the part profile directly on the screen.
-Tooling: Usually equipped with a segmented "Goat’s Foot" (sharp) tool on the upper beam, which allows for the formation of four-sided boxes.
-Hemming: The programmable upper beam stroke allows for the creation of closed, open, or teardrop hems without needing specialized tools.
