| Max Thickness | 0.059" | 1.4986 mm |
| Max Thickness (gauge) | 16 gauge | 16 gauge |
| Overall Length | 10.5' | 3.2 m |
| Control | CNC | CNC |
| Dimensions | 175"L x 88"W x 73"H | 175"L x 88"W x 73"H |
| Weight | 7,000 lbs. | 7,000 lbs. |

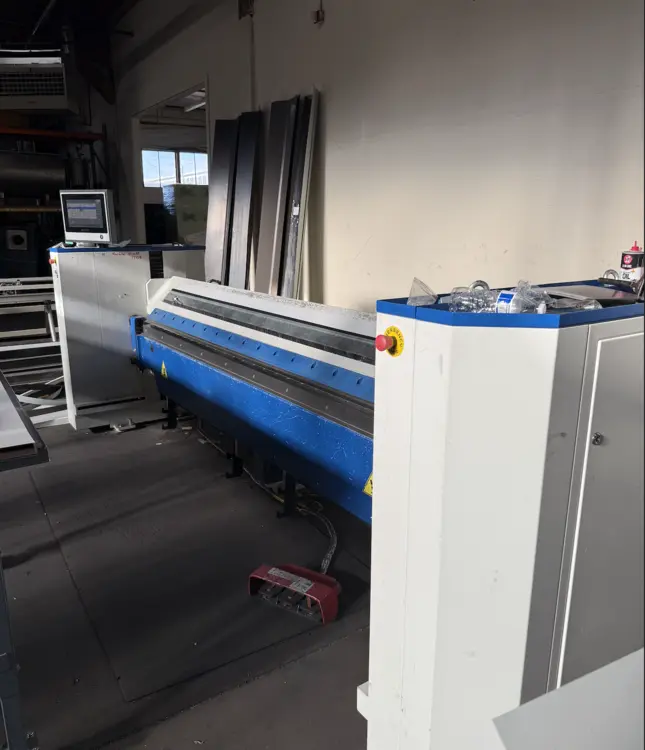

MODEL: MFC 3215
MAX SHEET LENGTH: 10.49 ft.
MILD SHEET: 16g
STAINLESS: 19g
ALUMINIUM: .10”
DIMENSIONS (WxLxH): 53.15/165.35/66.93”
WEIGHT: 4,739 lbs
STANDARD TECHNICAL SPECS
MAX FOLDABLE SHEET LENGTH: 10.49 ft (3220mm)
MAX THICKNESS CAPACITY IN FULL LENGTH: 16gauge STEEL
CLAMPING BEAM (Z AXIS)
OPENING HEIGHT (NO TOOLS): 4.72 in. (120 mm)
CLAMPING BEAM GEOMETRY: 35°
DRIVE POWER (AC MOTOR W/ ENCODER): 1 hp. (750 watts)
FOLDING BEAM (Y AXIS)
DRIVE POWER (AC MOTOR W/ ENCODER): 2 hp. (1500 watts)
FOLDING ANGLE: 0-135°
FOLDING BEAM ADJUSTMENT (A AXIS)
ADJUSTMENT HEIGHT: 1.38 in. (35 mm)
BACK GAUGE SYSTEM (X AXIS)
DRIVE POWER (AC MOTOR W/ ENCODER): 0.5 hp. (400 watts)
MIN/MAX GAUGING: 0.024 in. / 29.53 in. (6 mm / 750 mm)
This equipment has been sold. Similar equipment available now is shown below.
