| Tonnage | 192 T | 174.18 t |
| Type | HYD | HYD |
| Overall Length | 12' | 3.7 m |
| Between Housings | 10' | 3 m |
| Stroke | 12.6" | 320.04 mm |
| # Axis | 4 | 4 |
| Control | CNC (ESA S 640 Touch) | CNC (ESA S 640 Touch) |
| Weight | 30,000 lbs. | 30,000 lbs. |
Tonnage: 192 Ton
Bed Length: 143″
Distance Between Housing: 122″
Ram Stroke: 12.6″
Daylight without Holders: 23.6″
Throat Depth: 17.7″
Back Gauge X Travel: 29.6″
R Axis Travel: 9.8″
Approach Speed: 5.9 IPS
Bend Speed: 0.4 IPS
Power: 3 Phase / 480 V

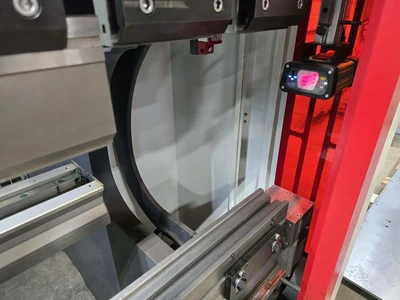

DSP Laser System
European Style Quick Change Tool Holders
15″ ESA S 640 touch screen 2D control unit
CNC Crowning

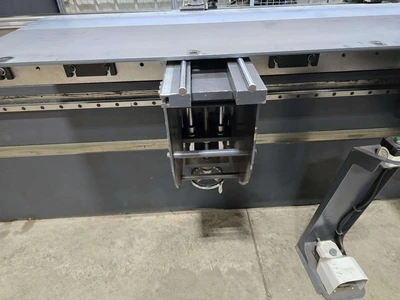

X, R, Z1/Z2 Backgauge
