| Max Thickness (gauge) | 16 gauge | 16 gauge |
| Overall Length | 10' | 3 m |
| Control | CNC (System 6000) | CNC (System 6000) |
| Dimensions | 175″ L x 64″ W x 56″ H | 175″ L x 64″ W x 56″ H |
| Weight | 5,500 Lbs. | 5,500 Lbs. |
Working Width: 124″
Maximum Sheet Thickness: 16 Ga
Minimum Inner Bend Radius: 1.5 x Thickness
Minimum Flange Height Inside: 6 x Thickness
Maximum Upstroke: 4.72″
Maximum Flooding Beam Adjustment: .19″
Backgauge Depth: .31″-39.4″
Working Height: 33″
Downstroke Speed: 2.5″/ Second
Maximum Folding Beam Speed: 80 Degrees/ Second
Backgauge Speed (.31″ – 30.4″): 1.9 Seconds
Electrical: 230/3/60
Approx. Shipping Weight: 5,500 Lbs.
Approx. Shipping Dimensions: 175″ L x 64″ W x 56″ H
Under power, available

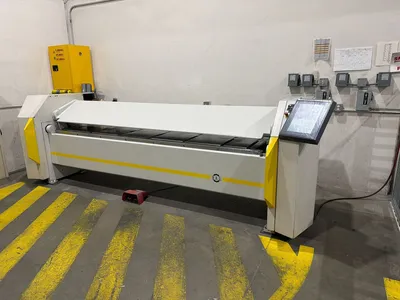

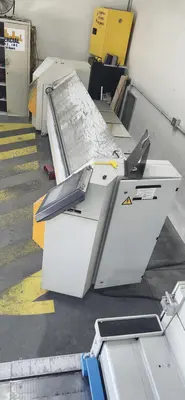

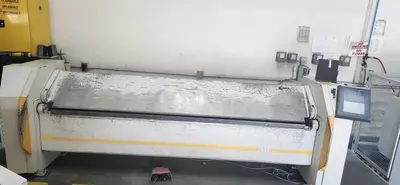

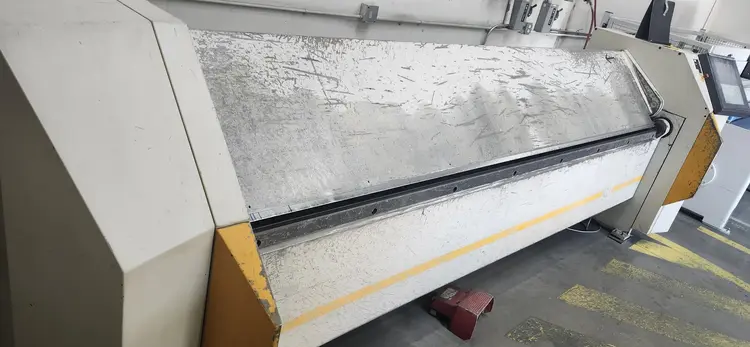

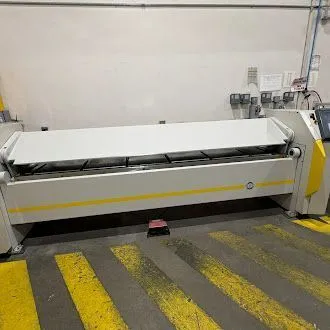

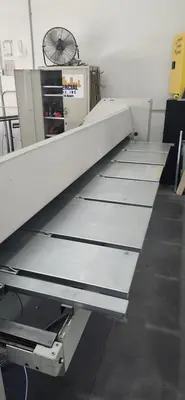

RAS CNC SYSTEM 6000 Touch Screen Control, Folding Beam, Upper Beam, and Virtual CNC Axis for the Folding Beam Adjustment, All Welded Steel Construction
