Max. outer diameter
204 mm; 8”
Max. side length and out circle dimeter
180 mm/ 204 mm; 7”/8”
For unloading unit 3 m
3000 mm; 118”
For unloading unit 3 m + 1.5m
4500 mm; 177”
For unloading unit 4.5 m
4500 mm; 177”
For unloading unit 4.5 m + 1.5 m
6000 mm; 236”
For unloading unit 6.5 m
6500 mm; 255”
For unloading unit 6.5 m + 1.5 m
8000 mm; 314”
With loadmaster tube 6.5 m
150 kg; 330 lbs.
With loadmaster tube (optional) 6.5 m
225 kg.; 496 lbs.
With loadmaster tube 9.2 m
150 kg; 330 lbs.
With loadmaster tube (optional) 9.2 m
225 kg; 496 lbs.

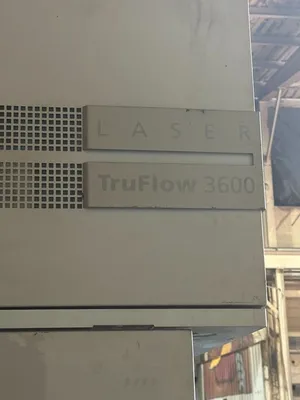

Max. laser output
3600 W
Max. sheet thickness mild steel
10 mm; ~3/8” (0.39”)
Max. sheet thickness stainless steel
6 mm; ~1/4” (0.23”)
Max. sheet thickness aluminum
5 mm; ~ 7 gauge (0.19”)
Average power input in production
26 kW
Under power, available for Inspection

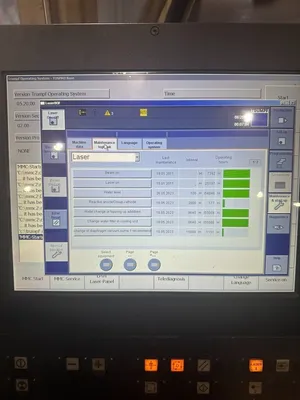

Beam On Hours: 7,400
Laser On Hours: 26,000
New Resonator Replaced in 2020
