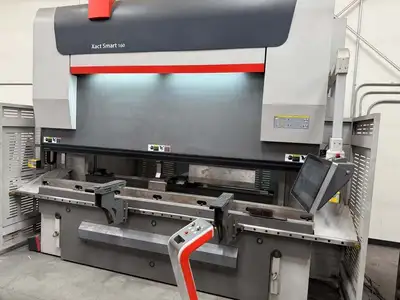

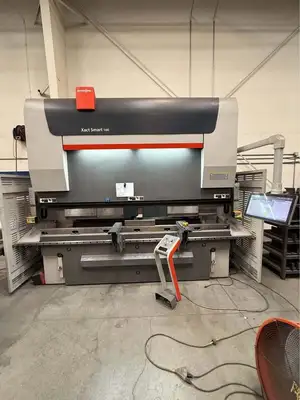

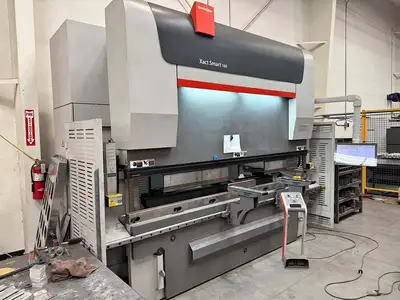

| Tonnage | 160 T | 145.15 t |
| Type | HYD | HYD |
| Overall Length | 3,100 mm | 10.17' |
| Between Housings | 2,450 mm | 8.04' |
| Stroke | 200 mm | 7.874" |
| Control | CNC (ByVision CNC Control) | CNC (ByVision CNC Control) |
| Dimensions | Length: 154″ Width: 74″ Height: 107″ | Length: 154″ Width: 74″ Height: 107″ |
| Weight | 25,353 lbs | 25,353 lbs |
Specification
Working Length: 3100 mm (122″)
Max. Press Force: 1600 kN (176 US Tons)
Standard Stroke: 7.9″
Max. Stroke: 300 mm (11.81″)
Open Height: 18.9″
Distance between Side Frames: 96.5″
Throat: 15.8″
Rapid Approach: 425 in/min
Working Speed: 1-13 mm/s
Return Speed: 425 in/min
Backgauge
X-axis Travel: 23.6″
X-axis Speed: 1417.3 in/min
X-axis Position Accuracy: 0.002″
R-axis Travel: 5.9″
R-axis Speed: 472.4 in/min
R-axis Position Accuracy: 0.002″
Z-axis Travel: 72″
Z-axis Speed: 2362.2 in/min
Max. Y-Approach Speed: 330.7 in/min
Max Y-Working Speed: 23.6 in/min
Y-Position Accuracy: 0.0004″
Electric values
Power of Main Motor: 18.5 kW
Total Connected Load: 30 kW
Operating Voltage: 3PH 480V
Frequency: 60Hz
Control voltage V DC: 24
Nominal Current Fuse A: 63
Equipped with

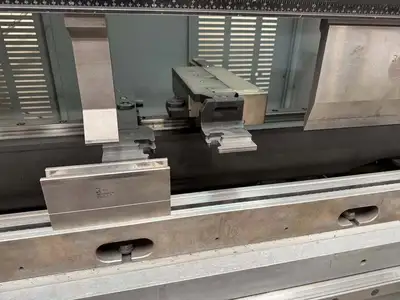

RFA Tooling
Crowning
CNC 5-Axis Backgauge

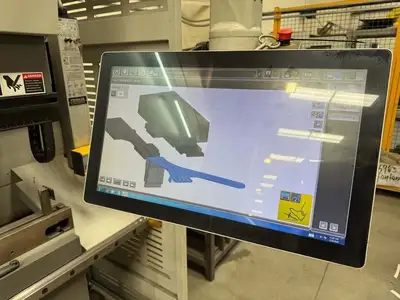

Bystronic ByVision CNC Control
AKAS 3PF Safety System
LED Illumination Front and Back
