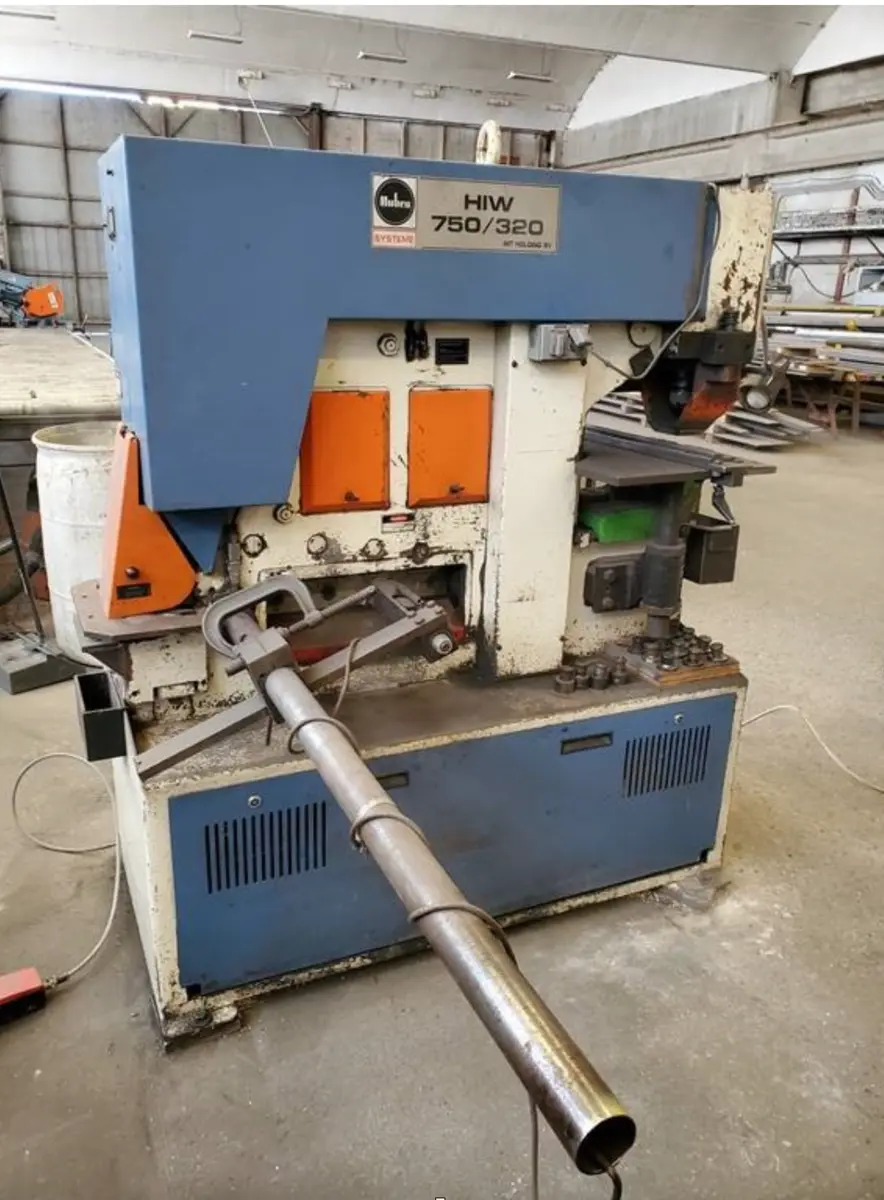

82 Ton Mubea HIW-750/320 Ironworker, 1999- Punch & Dies

PUNCH:
Pressure………………………………………………………………… 82 Tons
Diameter Thru Thickness………………………………………. 1-1/4” thru 13/16”
Channels in Flange………………………………………………… 4-15
Beams in Flange……………………………………………………. 4-15
Channels in Web…………………………………………………… 3-15
Beams in Web………………………………………………………. 3-15

Angle Shear:
Angle 90 deg………………………………………………………….6”x6”x1/2”
Angle 45 deg………………………………………………………….3”x3”x5/16”
Working Height……………………………………………………...39-3/4”

Bar Shear:
Round Bar………………………………………………………………2”
Square Bar……………………………………………………………..1-3/4”

Plate Shear:
Flat Bars…………………………………………………………………18-5/8”
Or……………………………………………………………………..12-3/4”

Coper/Notcher
With Rectangular Notching Tool
Plates…………………………………………………………………………………….. 15/32”
Angles in Flange…………………………………………………………………….. 3x7/16”
Notching Depth…………………………………………………………………….. 2-3/4”

Stroke(Punch) infinitely variable…………………………………………….0-2-3/4”
Number of Strokes(punch) at full stroke…………………per min….11
Number of Strokes(punch) at ¾”…………………………….per min….40
Motor, Voltage 208-240/440-480, 60 Hz………………………………… 10 HP
Oil Capacity…………………………………………………………………………..24 gallons
Machine Dimensions: 60-1/2” x 29-1/2”x65”
Weight: 4,035
